Propulsion System for AC Electrified Lines

Propulsion System for AC Electrified Lines

We provide propulsion systems that are high performance, compact and lightweight.

These products are related to rolling stock drive systems that travel in an AC feed section. We offer them as propulsion systems for AC electrified lines intended for high-speed railways including Shinkansen, local railways, and so on, both in Japan and overseas.

Features

Toshiba's propulsion system for AC electrified lines is structured as high performance devices that are compact, lightweight, low noise and energy-saving. There are a series of main converters (CI: Converter Inverter) that have simplified maintenance work and reliability.

Benefits & Value

  • Uses an AC drive system for improved ease of maintenance and workability
  • Uses an energy-saving and highly reliable main converter
  • Highly accurate and high response torque control by vector control

Performance

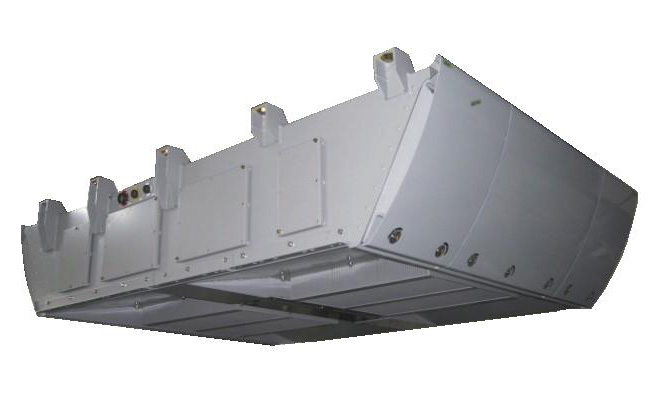

Blower-less main converter for Series N700 Shinkansen

Japan
For Central Japan Railway Company

Blower-less main converter for Series N700 Shinkansen

Click on the image to enlarge

Main converter for Series E5 Shinkansen

Japan
For East Japan Railway Company

Main converter for Series E5 Shinkansen

Click on the image to enlarge

Main transformer for Series E5 Shinkansen

Japan
For East Japan Railway Company

Main transformer for Series E5 Shinkansen

Click on the image to enlarge

Main converter for Series 900 EMU

Taiwan
For Taiwan Railway Administration

Main converter for Series 900 EMU

Click on the image to enlarge
