Hybrid Locomotives

Hybrid Locomotives

Clean, environmentally-friendly locomotives with reduced exhaust gas, noise and fuel consumption

Using high performance lithium-ion batteries as the main source of motive power, Toshiba delivered yard-track shunting locomotives capable of hybrid operation with a small engine to Japan Freight Railway Company. This hybrid locomotive realizes a maximum tractive effort of 20 tf, a maximum wheel tread output of 500 kW and a maximum operation speed of 45 km/h (110 km/h when out of service).

Features

The locomotive contains large capacity high-performance batteries the output alone of which can provide a haul load of 1300 t, enabling the size of the engine to be reduced. A PMSM is used as the motor, aiming at higher efficiency. From the structural aspect, a modular concept has been employed for improved ease of maintenance and workability, and also to enable higher performance storage batteries to be readily installed in the future.

Benefits & Value

  • Reduction of NOx emissions
  • Reduction of noise level
  • Reduction of fuel consumption
  • Improved ease of maintenance and workability

System Configuration

Energy flow at powering mode

Energy flow at powering mode

Click on the image to enlarge

Energy flow at braking mode

Energy flow at braking mode

Click on the image to enlarge

Technical Information

Series Hybrid Locomotive Equipped with Energy-Saving
Electrical Equipment for European Market

Performance

Type HD300 diesel hybrid shunting locomotive (trial production model)

Japan
For Japan Freight Railway Company

Type HD300 diesel hybrid shunting locomotive

Click on the image to enlarge

Type HD300 diesel hybrid shunting locomotive

Japan
For Japan Freight Railway Company

Type HD300 diesel hybrid shunting locomotive

Click on the image to enlarge

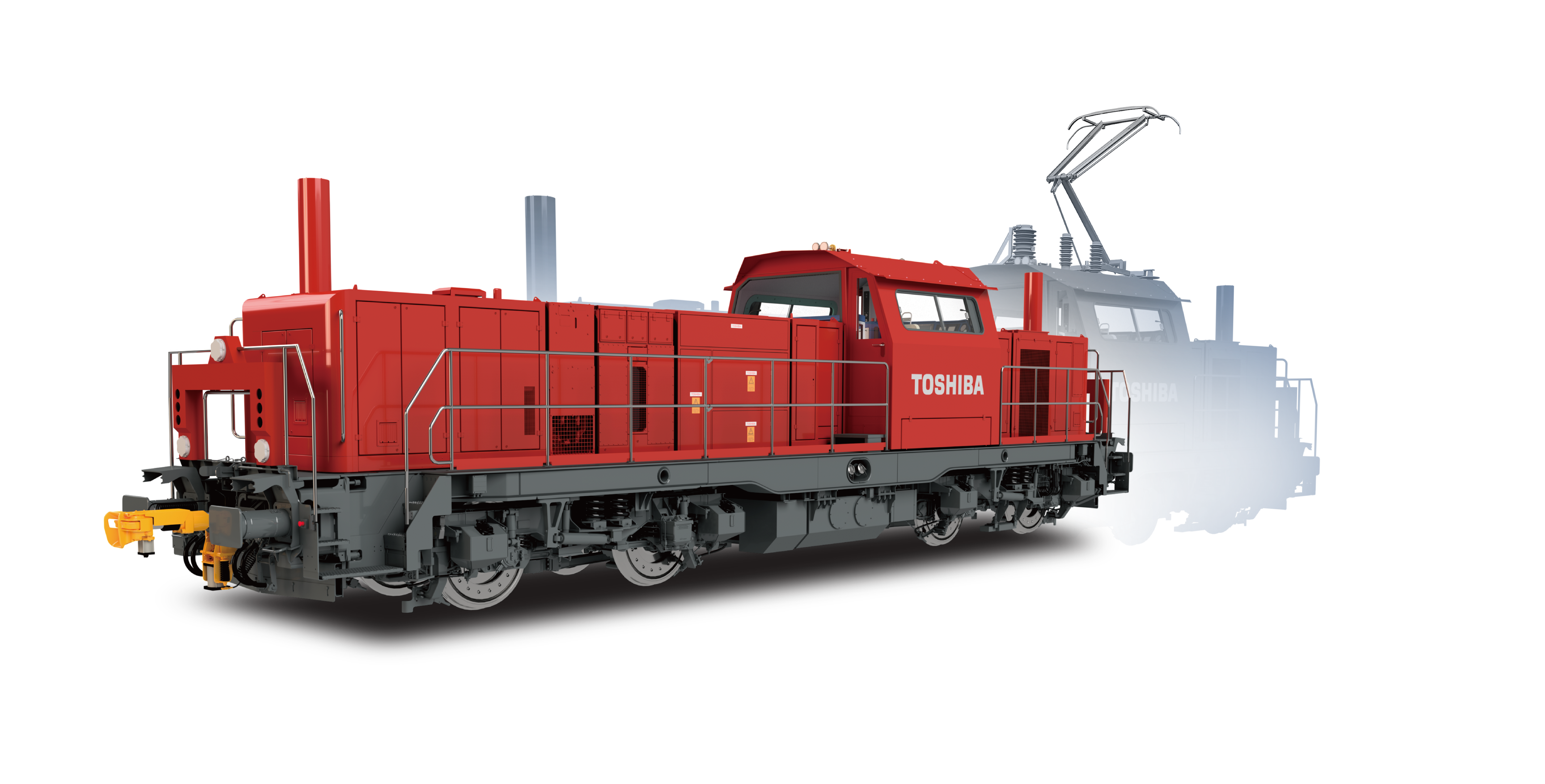

Type HDB 800 hybrid locomotive

for European Market
(under development)

Type HD300 diesel hybrid shunting locomotive

Click on the image to enlarge
