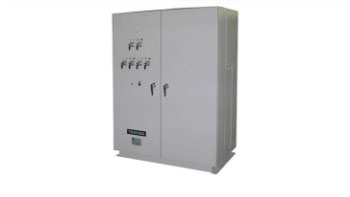

Solid Insulated Switchgear(SIS)
Solid Insulated Switchgear(SIS)
Feature
- Weight and Volume can be reduced tremendously.
- Live parts of main circuit are sealed with epoxy resin, and make conductive layer for prevention of short circuit or grounding by small animals.
- SF6 gas is not used. So contributes for preventing green house effect.
- Improvement of maintenance with simple construction.
- High quality is maintain without influenced by outside environment.
Specification
Specification List
This table can be scrolled horizontally.
| TYPE FORM | KA-20M25 | ||
|---|---|---|---|
| Switchgear | Rated voltage | 24kV | |
| Rated withstand voltage | Lightning impulse | 125kV | |
| Power frequency | 50kV | ||
| Rated frequency | 50, 60Hz | ||
| Rated current | 630, 1250A | ||
| Rated short time withstand current | 25kA | ||
| Applicable standard | IEC 298 | ||
| Vacuum circuit breaker | Rated voltage | 24kV | |
| Rated current | 630, 1250A | ||
| Rated interrupting current | 25kA | ||
| Rated short time withstand current | 25kA | ||
