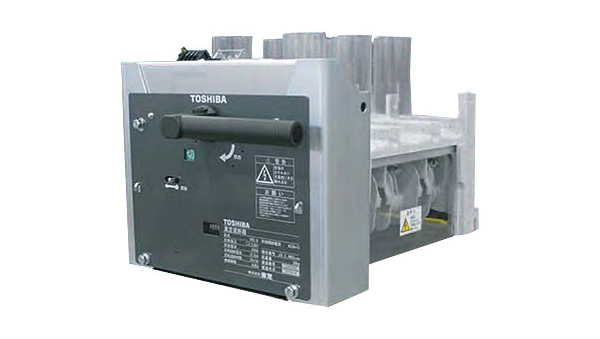

Vacuum Magnetic Contactor (VMC) CV-6type
Vacuum Magnetic Contactor (VMC) CV-6type
Specification
Specification List
This table can be scrolled horizontally.
| Type Form (*1) | Standard | CV-6GA | CV-6HA | CV-6GAL | CV-6HAL | CV-6KA1 | CV-6KAL1 |
|---|---|---|---|---|---|---|---|
| Upper front terminals | - | CV-6HA-2 | - | CV-6HAL-2 | - | - | |
| Rated voltage | 3600/7200V | 3600/7200V | |||||
| Rated operational current | 200A | 400A | 200A | 400A | 720A | ||
| Thermal current | 300A | 450A | 300A | 450A | 800A | ||
| Rated frequency | 50/60Hz | 50/60Hz | |||||
| Rated short-time withstand current | 6300A-1s | 8000A-1s | |||||
| Rated peak withstand current | 15.8kA | 20kA | |||||
| Short-circuit making & breaking current | 6300A | 8000A | |||||
| "O"- 3 min. - "CO" - 3 min. - "CO" | "O"- 3 min. - "CO" - 3 min. - "CO" | ||||||
| Rated making current (100 times) | 2000A | 4000A | 2000A | 4000A | 7200A | ||
| Rated breaking current (25 times) | 1600A | 3200A | 1600A | 3200A | 5760A | ||
| Withstand overload current 6 times 30 seconds 15 times 1 second |
1200A-30s | 2400A-30s | 1200A-30s | 2400A-30s | 4320A- 30s | ||
| 4000A- 4s | 4000A-12s | 4000A- 4s | 4000A-12s | 10800A- 1s | |||
| 8000A- 1s | 8000A- 2s | 8000A- 1s | 8000A- 2s | ||||
| Coordination with current-limiting fuses | Prospective short-circuit current 40kA | Prospective short-circuit current 40kA | |||||
| Cut-off current (Peak) | 55kA | 85kA | 55kA | 85kA | 85kA | ||
| Insulation level | Impulse withstand | 60kV | 60kV | ||||
| Power frequency withstand | 22kV | 22kV | |||||
| Rated duties (40% on load factor) | 1200 operations/hour (AC3) | 300 operations/hour (AC3) | 600 operations/hour (AC3) | 300 operations/hour (AC3) | |||
| Endurance | Mechanical life | 2.5 million operations | 0.25 million operations | 1 million operations | 0.2 million operations | ||
| Electrical life (AC3) | 0.25 million operations (AC3) | 0.25 million operations (AC3) | 0.2 million operations (AC3) | 0.2 million operations (AC3) | |||
| Maximum applicable load capacity | Motor | 750/1500kW | 1500/3000kW | 750/1500kW | 1500/3000kW | 2500/5000kW | |
| Transformer | 1000/2000kVA | 2000/4000kVA | 1000/2000kVA | 2000/4000kVA | 3500/7000kVA | ||
| Capacitor | 1000/2000kVar | 2000/2000kVar | 1000/2000kVar | 2000/2000kVar | 2000/2000kVar | ||
*1 : Type form configuration
