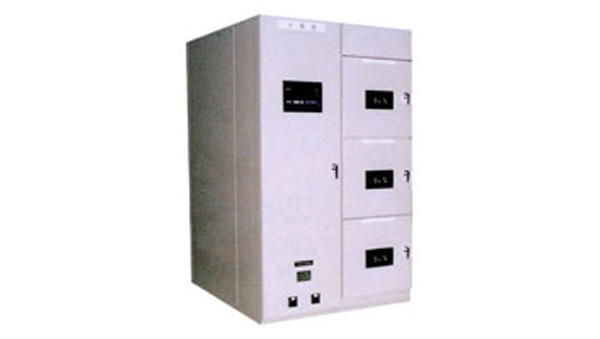

Switchgear for Small Capacity VMH/VUH type
Switchgear for Small Capacity VMH/VUH type
Feature
- Installed new type VCB, Multi-mode relay and wide range CT.
- Line up for Earthquake-proof type switchgear.
- High safety was realized with dead front construction.
- Draw-out type apparatus is made into a standard and maintenance is easy.
- Front maintenance type is also line up.
Specification
Specification List
This table can be scrolled horizontally.
| TYPE FORM | VMH | VUH | |
|---|---|---|---|
| Rated voltage | 7.2(3.6)kV | 7.2(3.6)kV | |
| Rated withstand voltage | Lightning impulse | 60(45)kV | 60(45)kV |
| Power frequency | 22(16)kV | 22(16)kV | |
| Rated frequency | 50, 60Hz | 50, 60Hz | |
| Rated current | 600、1200A | 600、1200、2000A | |
| Rated short time withstand current | 12.5(16), 20(25)kA | 12.5(16), 20(25)kA | |
