Width Length Gauge
TOSGAGE-H2740
A Width Length Gauge accomplishing high resistance to the environment and high performance.

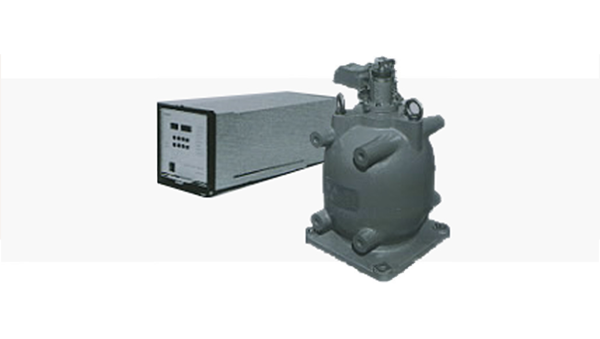

Width Length Gauge TOSGAGE-H2740
Features
- 1. A CCD camera is used as a sensor for the purpose of measuring slab width and length. In the following functions are adopted for achieving a good performance.
- a) Resolution compensation:
To achieve a high measurement resolution by bit-compensation. - b) High speed ATC:
To provide a suitable measurement not dependent on the temperature variation of the slab to be measured.
- a) Resolution compensation:
- 2. Industrial calculation computers ensures a highly accurate measurement of slab width and length, involving the following functions.
- a) Skew angle measurement function
- b) Smoothing function
- c) Calibration function
- d) Thickness error compensation
Specifications
Specifications List
This table can be scrolled horizontally.
| Measurement dimension | 5500mm (width) × 6500mm (length) |
|---|---|
| Scanning speed | Approximately 6m/s |
| Accuracy | ±2mm |
| Plate surface temperature | 900 ～ 1300 ℃ |
| Measurement time | Approximately 2s (Scanning time 1s＋Calculate time 1s) for Slab |
* The specification shown above is an example. Actual specifications can be adjusted and may vary depending on installation conditions.
