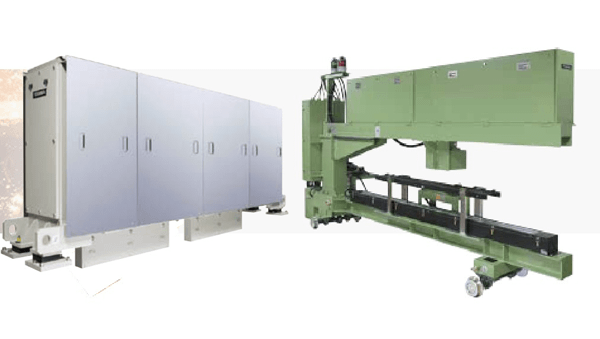

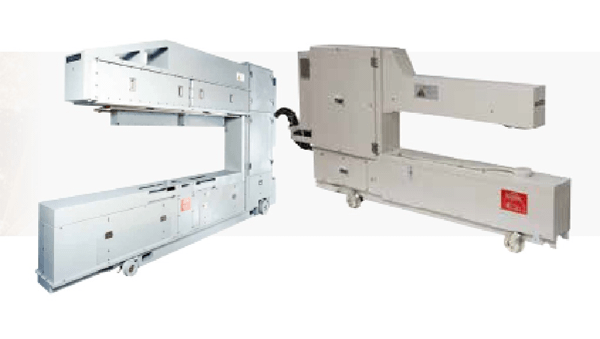

Inner Inspection System
TOSPECTRON-I Series
Detect defects which exist in the outer layer and inside of strip in real time on-line.
It is possible to combine conventional surface inspection & outer layer & inner defect detection system.
Inner Inspection System TOSPECTRON-I Series
Features
- A high sensitivity Hall device is adopted as a defective detection sensor.
- Adopt the filter circuit which correspond cutoff frequency automatic change, and it makes stably measurable maximum line speed 1200m/min.
- Highly compatible with conventional surface inspection system. High reliable proposal is available.
Specifications
Specifications List
This table can be scrolled horizontally.
| Materials | Magnetic materia (l iron, steel, special steel etc) |
|---|---|
| Strip width | 400 ～ 2000mm (with reference to the line center) |
| Strip thickness, Strip depth, Defective size |
 |
| Line speed | 100 ～ 1200m/min. |
| Pass line gap | in the direction of strip thickness, 1.0mm |
- * The specification shown above is an example. Actual specifications can be adjusted and may vary depending on installation conditions.
