Multi-Loop Controller LC531/LC532
Multi-Loop Controller LC531/LC532 is an instrumentation panel controller, which supports various applications with user programs. Toshiba continuously enrich the features, reliability and user friendliness. Simultaneously securing the compatibility of attachment to limited space, panel cut and depth result to the advanced features.
Multi-Loop Controller LC531/LC532
Features
High speed operation and power saving
- Processing speed is twice of conventional models.*1*2
- Power conservation of about 60%.*1
- *1 Compared to conventional model LC521
- *2 In case the maximum registration composition is 8 PID tags
Network
- Ethernet
- Construction of OIS-DS/SMART supervision and control system and OIS-DS supervision and control system through PLC server and communication between single loop controller.
- RS485
- Support EC Bus transmission and share connection with EC300 series.
PID control
- Toshiba possess the 2-degree-of-freedom hyper PID control.
- Advance control system carried out easily.
Engineering
- Applications of new function block corresponding to the programming which abides the IEC 61131-3 standard.
- Developments of efficient program contribute to reduction of development cost.
Size line up
There are 2 lines up available
Size 450mm:easy replacement
Size 250mm:new compact type
Application example

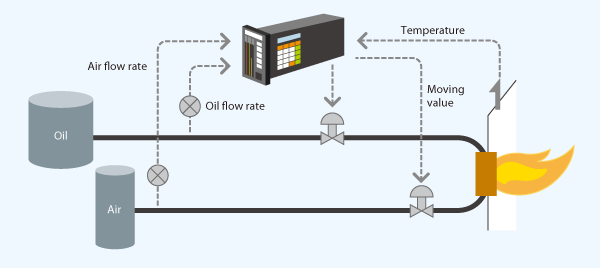

Boiler combustion control
System configuration
Instrumentation Panel
I/O extention
High speed processing with general PLC
By using LC531/LC532, from conventional panel instrumentation to middle/large scale system, you can configure various appropriate systems for any purposes.
Functional specification
General Specification
This table can be scrolled horizontally.
| Electrical conditions | Power supply | 24Vdc +10%-15%(ripple of 1% or less) | |
|---|---|---|---|
| Consumption power | Main unit power supply:24VDC-Approx. 0.2A DI/O power supply:24VDC-50mA or less |
||
| Allowable instantaneous interruption time | 1ms or less | ||
| Memory backup | Data retention:1year(Lithium battery) temperature 25℃ |
||
| Online installation and removal | Online installation and removal of the LC53x(*3) main unit can be done Installation/removal from the housing |
||
| Casing | External dimensions | LC53xE*S (*3) | 72W×144H×250D(mm) |
| LC53xS*S (*3) | 72W×144H×450D(mm) | ||
| Weight | LC53xE*S (*3) | Approx. 2kg | |
| LC53xS*S (*3) | Approx. 3.5kg | ||
| Panel cutout dimensions | 68W×138H(mm)square hole plate thickness 8mm or less | ||
| Panel material | Panel:ABS resin (UL94-V0)-Black Case:Iron plate-Black paint |
||
| External line terminal block | Power supply, signal, RS485 transmission :M3.5 screw terminals Ethernet:RJ45 connector |
||
| Draw-out operation of LC53x(*3) main unit | Fixed/draw-out operation is possible with 2-stage stopper mechanism | ||
- *3 LC53x represents LC531 and LC532.
I/O Specifications
This table can be scrolled horizontally.
| Analog input(AI1 to 6) | Number of input points | 6 points |
|---|---|---|
| Input range | 1 to 5Vdc (Signal common terminalSC, terminal No.6) | |
| Insulation unit | No insulation between channels | |
| Input impedance | During energization:1MΩ or more During power down:1MΩ or more |
|
| Resolution | 16bit | |
| Conversion data | 12800 to 64000 counts/1-5Vdc | |
| Operation output(MV1,2) (LC531 only) |
Number of output points | 2 points |
| Output range | 4 to 20mA (Power supply common 0V, terminal No.3, 26) | |
| Insulation unit | No insulation between channels | |
| Resolution | 16bit | |
| Conversion data | 12800 to 64000 count/4 to 20mAdc | |
| Load resistance range | 0 to 600Ω | |
| Analog output(AO1,2) | Number of output points | 2 points |
| Output range | 1 to 5Vdc (Signal common terminal SC, terminal No.6) | |
| Insulation unit | No insulation between channels | |
| Resolution | 16bit | |
| Conversion data | 12800 to 64000 count | |
| Digital input(DI1 to 3) | Number of output points | 3 points |
| External signal | No voltage contact (external 24V 5mA±20% at contact ON) |
|
| Digital output(DO1 to 5) | Number of output points | 5 points |
| Output type | FET open-drain output | |
| Maximum rating | 30V-0.1A | |
| WDT output | Number of output points | 1 point |
| Output type | FET open-drain output | |
| Output signal | Normally “ON” In case of an error “OFF” |
|
| Maximum rating | 30V-0.1A | |
| Puls output(PO) (LC532 only) |
Number of output points | 1 point (open, close) |
| Output form | Puls width output | |
| Output type | FET open-drain output | |
| Output signal | Low speed : 0.072×n-sec/control-period High speed : 0.072×n-sec/control-period |
|
| Maximum rating | 30V-0.1A |
Environment Specification
This table can be scrolled horizontally.
| Environment conditions | Operating ambient temperature | 0 to 55℃ |
|---|---|---|
| Storage temperature | -40 to 70℃ | |
| Relative humidity | 10% to 95% Level RH2 (with no condensation) | |
| Dust | 0.3mg/m³ (no conductive dust) | |
| Corrosive gas | No corrosive gas shall be present. | |
| Vibration resistance | 5≦f＜9Hz:Half amplitude of 3.5mm 9≦f＜150Hz:Constant acceleration of 9.8m/sec² |
|
| Impact resistance | 147m/s² | |
| Altitude | 2000m or less | |
| Grounding | Type-D grounding | |
| Installation location | Inside an indoor control panel | |
| Cooling | Natural cooling |
