Build sustainable infrastructure by enhancing sewage plant treatment capacity and cutting energy consumption

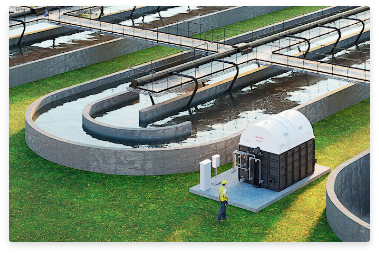

Habuki™ is a new water treatment device that utilizes the Rotating Biological Contactors*1.
Designed to perform compact and energy-efficient pretreatment, Habuki™ enhances treatment capacity and delivers energy-saving benefits compared to conventional oxidation ditch treatment.
With Habuki™, we aim to optimize facility scale and reduce running costs, contributing to solving our customers’ challenges.
Driven by this vision, we launched “Habuki™” in 2024.
- Key differences from conventional Rotating Biological Contactors :
・Used as a pretreatment device for the OD method
・Employs a three-dimensional mesh-structured rotating fiber unit
・Combines with beneficial microorganisms (Bacillus species)
Features of Habuki™
Three winning reductions
1. Rotating fiber unit (2m diameter) x 30
2. Rotation speed of 1-3 rotations a minute
3. Diffusion to washing and reducing sludge on the rotating fiber unit and agitation
![Size: L3,400mm W2,400mm H3,050mm Weight: Net Weight5.3t / Weight under operation 21.8t Fiber: [Material] Polyvinylidene chloride (PVDC) [Configuration] φ2000mm × 30pieces Life expectancy: 15years Rated capacity: 1.5kW (＋for blower 1.5kW) Treatment capacity: Max. 1400㎥/day/unit](/content/toshiba/ww/products-solutions/social/water-environmental/solution-product/municipal-field/sewage-treatment/habuki/about/_jcr_content/root/contentsArea/mainarea/layoutcontainer_712403891/layoutcontainer/layoutcontainer_copy/layoutcontainer/image.coreimg.svg/1764210958430/outline-text.svg)
1. Rotating fiber unit (2m diameter) x 30
2. Rotation speed of 3-8 rotations a minute
3. Diffusion to washing and reducing sludge on the rotating fiber unit and agitation
![Size: L3,400mm W2,400mm H3,050mm Weight: Net Weight5.3t / Weight under operation 21.8t Fiber: [Material] Polyvinylidene chloride (PVDC) [Configuration] φ2000mm × 30pieces Life expectancy: 15years Rated capacity: 1.5kW (＋for blower 1.5kW) Treatment capacity: Max. 1400㎥/day/unit](/content/toshiba/ww/products-solutions/social/water-environmental/solution-product/municipal-field/sewage-treatment/habuki/about/_jcr_content/root/contentsArea/mainarea/layoutcontainer_712403891/layoutcontainer_copy/layoutcontainer_copy/layoutcontainer/image.coreimg.svg/1764210958430/outline-text.svg)
Feature 1: Reductions in costs

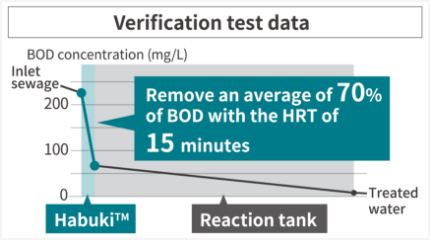

Quickly reduces the reaction tank load, and reduces the power consumed by aeration in the reaction tank.
- BOD: biochemical oxygen demand, the amount of oxygen required to decompose organic matter in the water (mg/l)
- HRT: hydraulic residence time
Feature 2. Reductions in space

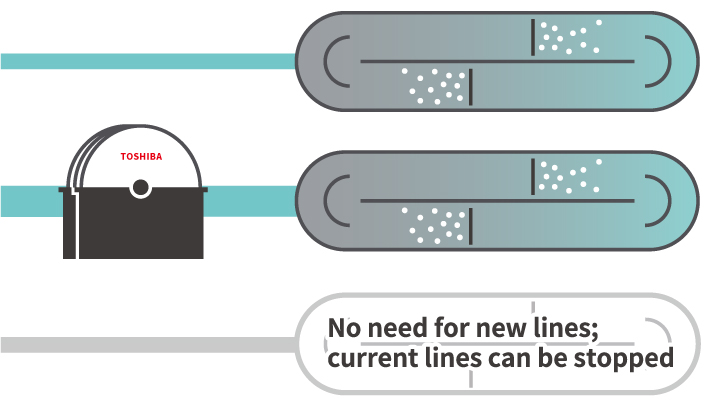

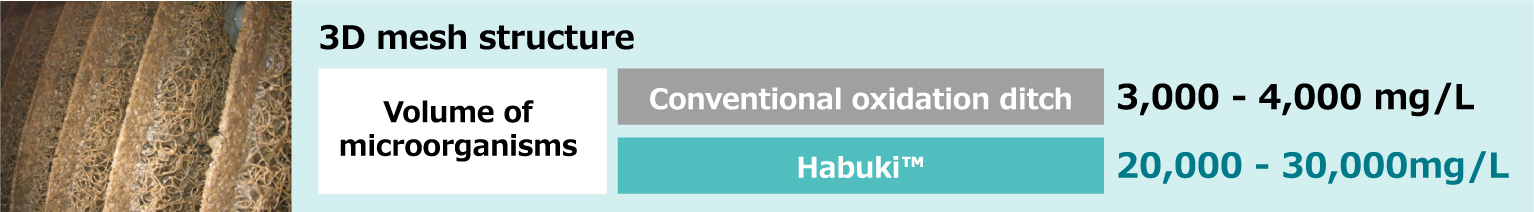

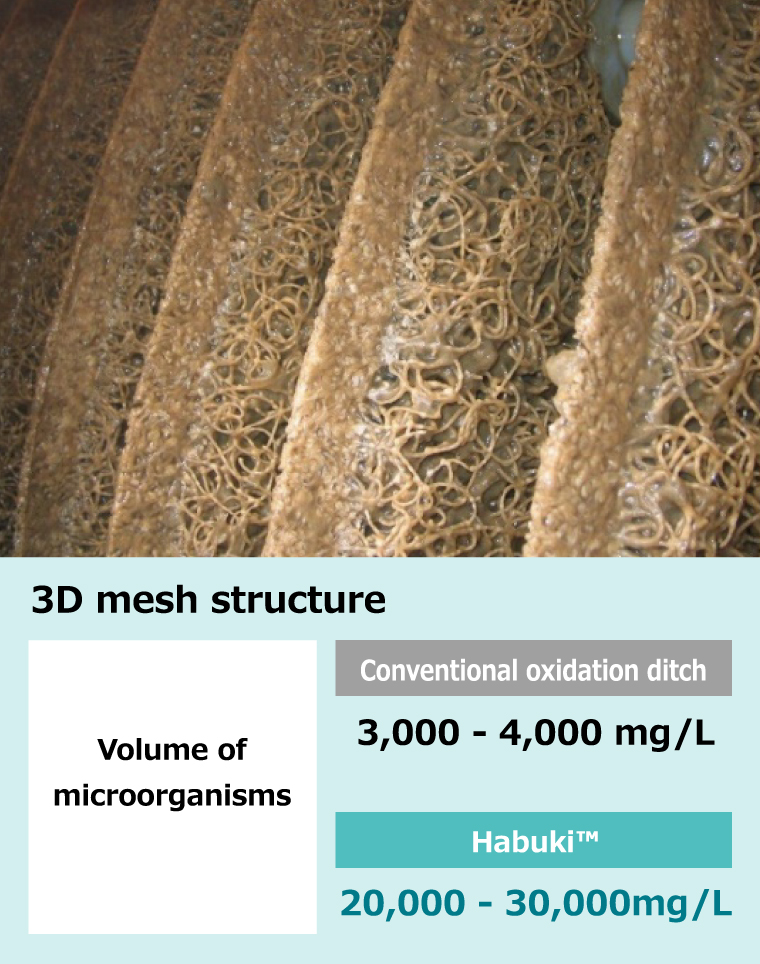

High-load operation with a very large volume of microorganisms can reduce the number of reaction tank lines.
Feature 3. Reductions in complexity

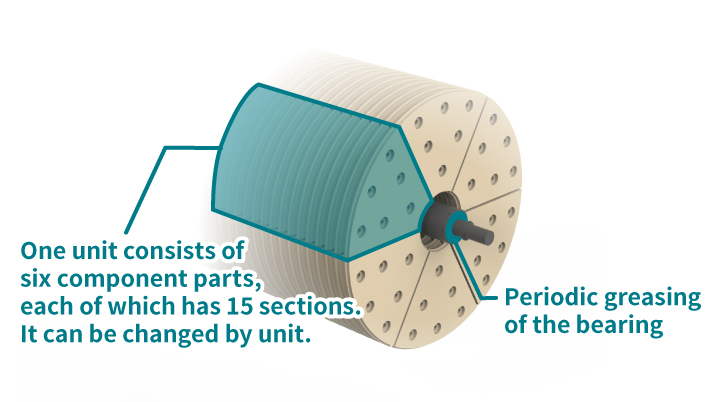

A simple structure, easy to maintain.
The fiber unit can be changed in 1 or 2 days.
The load of the reaction tank can be reduced.
Expected benefits
Process example with Habuki™
Treating sewage by Habuki™ before the reaction tank removes BOD and nitrogen in a short time.
Reduces the load on the reaction tank and reduces the power consumption for aeration.
*2 Nutrient: Main component is a mineral used to dominate useful microorganisms. The nutrient dilutes the undiluted solution and feeds it to the system.
*3 Since outlet water of Habuki™ contains return sludge, the solubility BOD and T-N are measured.
