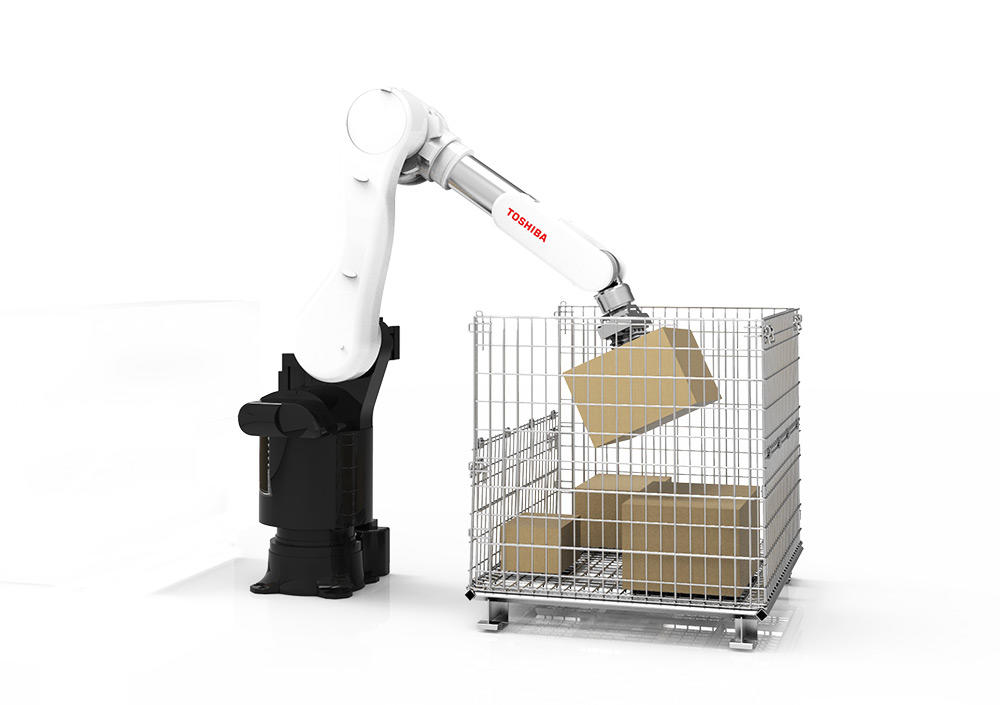

Unloading Robot

Smooth unloading of randomly stacked items.

Video

Unloading Robot

*Links to YouTube.

Unloading Robot

・Handle randomly stacked items

・600pph throughput without prior teaching

Smooth unloading of randomly stacked items

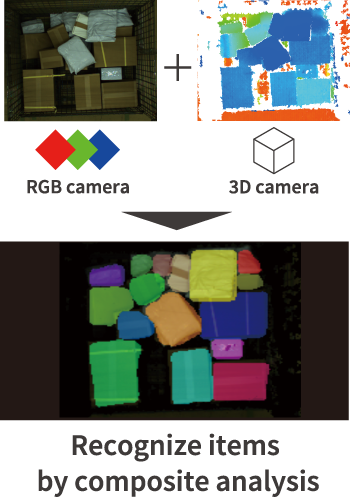

Dual cameras recognize items

Dual cameras recognize items

An RGB and 3D camera recognize items with no need for prior teaching.

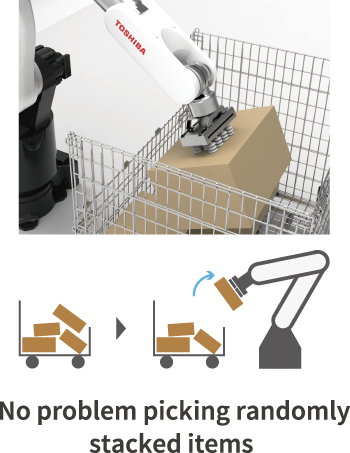

Secure picking of uneven items

Dual cameras recognize items

Items at unevenly packed are securely held by changing the angles of the gripper.

High-speed processing at 600pph

High-speed processing at 600pph

On-site performance is maximized with peripheral equipment.

Operation is secure and stable

Advantage of the unloading robot

Safe, stable operation

Safe, stable operation

Eliminate operator error and mistakes

Operator workloads are cut

Operator workloads are cut

Items as heavy as 20kg can be handled

Installing Toshiba's robot boost security and efficiency.

Installing Toshiba's robot boost security and efficiency.

Specifications

Specifications
Item Description
Gripper type Vacuum suction from above
Applicable containers Pallet, roll container
Max. item size (mm) W600 × D650× H325
Max. item weight (kg) Less than 20
Dimensions (mm) W2200 × D3200 × H2700
Weight (kg) Under 800 (excluding control panel and air compressor)
Throughput (pph) 600 (for items up to 8kg) * May vary with stacking.
Environmental conditions Ambient temperature : 5 to 35℃,
Relative humidity: 35 to 85%RH (Non condensing)

Download the brochure here

Unloading Robot (PDF)
