Density (Consistency)
Meter LQ500
General Specificaition

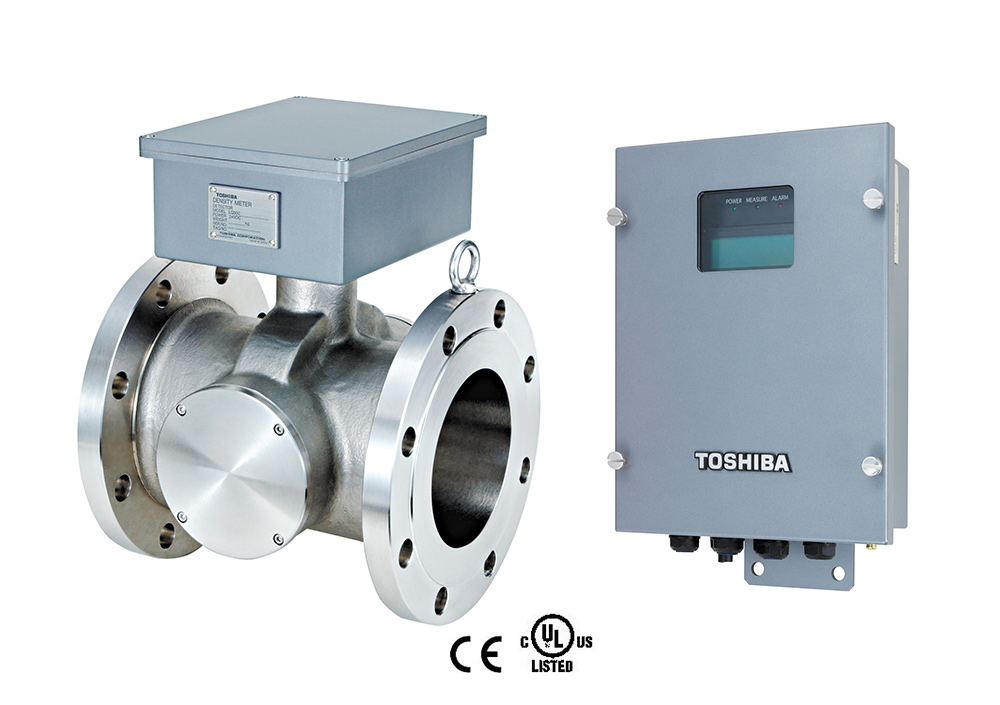

The LQ500 Density (Consistency) Meter uses microwave phase shift technology to determine concentrations of solids in the material to be measured flowing through pipes. It can perform a stable and realtime density (consistency) measurement because this technology is not affected by flow velocity along with fluid color, and also is not easily affected by contaminants and low process pressure rate. As the LQ500 has no moving parts, it is reliable and virtually maintenance free.
Since the output of the LQ500 is theoretically linear, it can be applied to a wide range of density (consistency) measurement.
The AF900 Hand-held terminal (HART*1Communicator) can be used for remote control.
Main Specifications
Main Specifications List
This table can be scrolled horizontally.
| Mounting style | Flange connection type | |
|---|---|---|
| Meter size | 50mm, 80mm, 100mm ,150mm, 200mm, 250mm, 300mm | |
| Measuring range | 50mm | 2 to 50%TS |
| 80 to 300mm | 1 to 50%TS | |
| Repeatability | 50mm | +/-0.02%TS(*2) (+/-2%TS)(*3) |
| 80 to 300mm | +/-0.01%TS(*2) (+/-2%TS)(*3) |
|
| Resolution | 50mm | 0.002%TS(*2) (0.1%TS)(*3) |
| 80 to 300mm | 0.001%TS(*2) (0.05%TS)(*3) |
|
| Fluid temperature | 0 to +100℃ | |
| Fluid conductivity | Less than 6 to 20mS/cm (depends on meter size) |
|
| Microwave power | Approximately 10mW | |
| Structure | Detector: IP67 Converter: IP65 |
|
| Power supply | AC100V to AC240V, 50/60Hz Allowable voltage AC85V to AC264V |
|
- *1 ART protocol (Highway Addressable Remote Transducer) is a communication protocol for industrial sensors recommended by the HCF (HART Communication Foundation).
- *2 The result of commuting ability in the phase measurement of converter.
- *3 Density (consistency) determination repeatability for sample reagent.
Application Examples List
Main Specifications List
This table can be scrolled horizontally.
| Paper pulp Industry | Pulps | L Material/N Material/Waste paper |
|---|---|---|
| Mineral pigments | Calcium carbonate/Oxidized titanium/Zinc oxide/Talc etc. | |
| Pulp Sludge/Blend of Each Pulp and Mineral pigment/Paint pigment coated paper | ||
| Building material Industry | Pulp/Cement/Slag/Inorganic textiles/Silica/Cellulose Powder/Flocculant | |
| Food Industry | Starch(Corn, Poteto, etc.)/Gluten/Sugar/Alcohol/Coffee/Cream Cheese/Juice | |
| Others | Pure Sludge Water/Boracic acid, etc. | |
