High-Environmental Resistance Design
The following design policy promotes continuous operation to be possible even under severe conditions in the industrial field.
This helps that Industrial Computers can be applied to a wide range of uses in the industrial field where environmental conditions are severe.
Dustproof
- An air filter, a standard component, covers the cooling air intake.
- The high internal pressure prevents dust from entering the main unit.
- The forced intake fan and exhaust fan maintain the high pressure inside the main unit.
Vibration and Shock

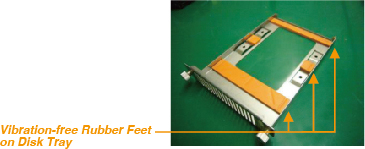

- The chassis is designed for high resistance to vibration, using vibration-free rubber feet for HDD, for example.
- Connectors with highly reliable contacts are utilized.
- Whenever a new connector is applied to the product, it is evaluated by a high-level evaluation method in an in-house laboratory.
- Disk option: Silicon disk (for FA2100S model 300/200)
Example of Gaskets Installed in FA2100S
Noise
- High-level Toshiba design standard
Electromagnetic Radiation Shield
→Gap-free chassis design (e.g. gaskets in expansion bus slot window)
Reduction of Electromagnetic Radiation Sources
→Appropriate position of bypass capacitors and noise filters on printed circuit boards
→Examination of component positions and signal patterns to control unnecessary electromagnetic
radiation from printed circuit boards (resonance analysis)
- Test standards and the EMC Test Center support the in-house development process with high-level evaluation technology.
- Toshiba issues a declaration of conformity with "CE Marking" for Toshiba products. Toshiba products are also certified by "UL" and "CCC".
EMC Test Center and its Anechoic Chamber
