CP30 model 300
Embodying the performance and robustness required for edge computing in a compact body
Robustness, environmental resistance, 24/7 operation, and long-term availability and maintenance are essential for industrial computers. In addition to these characteristics, the CP30 model 300 embedded industrial computer provides high computing performance, connectivity, and extensibility required for edge computing--all in a more compact body than its predecessor. The CP30 model 300 supports stable operation of social infrastructure systems in various fields, including monitoring and control of broadcasting, communication, water supply and sewage, transportation, and electric power systems.

Major performance and functional enhancements
Intel Atom® processor (1.6 GHz) with low power consumption

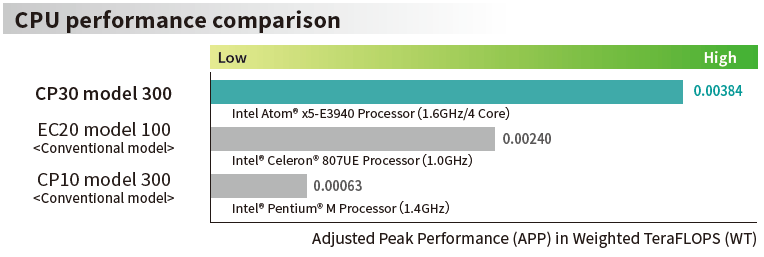

Incorporating the Intel Atom® x5-E3940 processor (1.6 GHz) suitable for fanless computers, the CP30 model 300 delivers a stable quad-core operation with low power consumption.

* The above figure shows the Adjusted Peak Performance (APP) values released by Intel. The CPU performance depends on customers' systems.
Gigabit (2 Ports) Ethernet Interface is a Standard Feature
Gigabit-compatible 2 Ports Ethernet interface (with auto negotiation for 10BASE-T, 100BASE-TX, 1000BASE-T) is a standard feature (Compatible with the Wake On LAN function).
Enhanced environmental resistance
The use of a low-power-consumption platform specifically designed for embedded industrial computers helps reduce the amount of heat generated. In addition, the chassis designed with a custom heat sink provides an increase in the cooling efficiency from natural convection, making it possible for the CP30 model 300 (with 4 GB main memory and no OS shutdown battery) to support an ambient operating temperature range of 0°C to 50°C. The use of an SSD as secondary storage also provides enhanced environmental resistance since, unlike HDDs, SSDs have no mechanical moving parts such as a spindle.
Power supply options for various installation environments
Power supply options

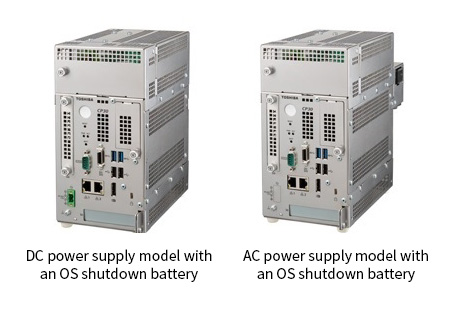

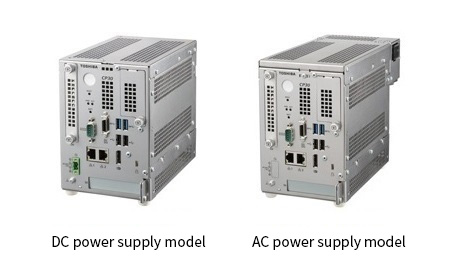

The CP30 model 300 is available in models with a DC power supply (rated supply voltage: 24 VDC) or an AC power supply (rated supply voltage: 100-240 VAC).

OS shutdown battery (optional)
In the event of an interruption of the main power supply, the CP30 model 300 is automatically switched to the backup battery to shut down the operating system (OS) properly. Depending on the system requirement, the CP30 model 300 can be configured to either enter the standby state after OS shutdown or reboot automatically when the main power supply recovers during OS shutdown.

Installation
Installation styles
The CP30 model 300 can be installed either vertically or horizontally according to the place of installation. In addition, an optional stand allows the main unit to be fixed inside a customer's system.

Outstanding maintainability
Enhanced maintainability due to the front-access structure

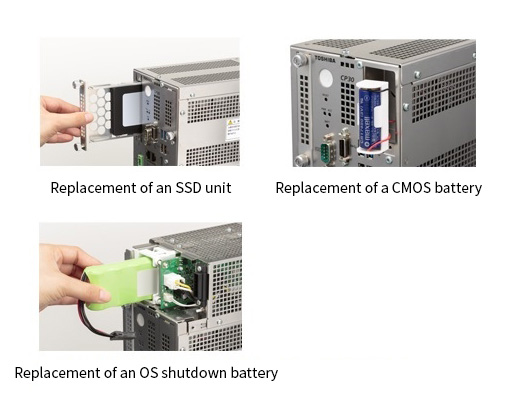

The front-access design allows easy replacement of an SSD unit, a CMOS battery, and an optional OS shutdown battery.

Specifications
This table can be scrolled horizontally.
Product Name | CP30 model 300 | ||
---|---|---|---|
DC Power Model | AC Power Model | ||
Processor | Main Processor | Intel Atom® x5-E3940 Processor (1.6GHz) | |
No. of Cores/No. of Threads | 4/4 | ||
Cache Memory | 2 MB (built into main processor) | ||
Main Memory*1 | Capacity | Min. 4GB (4GB×1), Max. 8GB (8GB×1) | |
Memory | ECC | ||
Type | DDR3L-SDRAM | ||
Operating Speed | DDR3L-1600 | ||
Auxiliary Storage | Built-in SSD*2 | Option | |
Interface | COM Interface | RS-232C (9-pinD-SUB)×2 (front) | |
Graphic Interface*3 | DisplayPort ×1 (on-board graphics) | ||
LAN Interface | 10BASE-T/100BASE-TX/1000BASE-T (Auto Negotiation) (RJ45)×2 (front) Wake On LAN (compatible for main unit port only) |
||
USB Interface*4 | USB3.0 (TYPE A) × 2 ports (front), USB2.0 (TYPE A) × 2 ports (front) | ||
DI/DO Interface*5 | Option | ||
Expansion Interface | PCI Express*6 | Low profile (× 4 connectors, × 1 lane) 1 slot PCI Express 2.0 | |
Input Device | Keyboard | Option | |
Mouse | Option | ||
RAS Function | CPU temperature rise detection, Internal temperature detection, Internal voltage detection, CMOS battery monitoring, OS shutdown battery monitoring, Memory error detection, Digital input/output*7 (DI/DO 4 points each, remote ON/OFF or remote initialize 1 point), Watchdog timer monitoring (at system startup, during system operation), Software power off (shutdown), Remote initialize, Remote power on/off, Error information saved on RAS memory, Operating time monitor function, Temperature information trend function, Simulation function |
||
Power Supply (Wide Range Power Supply)*8 |
Rated voltage DC24V, allowable voltage DC20.4V-DC26.4V, Rated current 2A |
Rated voltage 100VAC-240 VAC, allowable voltage 85 VAC - 264 VAC, allowable frequency 50 Hz/60Hz±3Hz |
|
Electric Power Consumption*9 | Max. 50W | Max. 115W/134.4VA | |
Dimensions and Weight*10 (excluding rubber feet and protrusions) |
Horizontal installation 114 (W) ×164 (H) ×174 (D) mm Weight: about 2.5 kg Vertical installation 164 (W) ×114 (H) ×174 (D) mm Weight: about 2.5 kg |
Horizontal installation 114 (W) ×222 (H) ×174 (D) mm Weight: about 3.5 kg Vertical installation 222 (W) ×114 (H) ×174 (D) mm Weight: about 3.5 kg |
|
with OS shutdown battery | Horizontal installation 114 (W) ×172 (H) ×221 (D) mm Weight: about 3.0 kg Vertical installation 172 (W) ×114 (H) ×221 (D) mm Weight: about 3.0 kg |
Horizontal installation 114 (W) ×222 (H) ×221 (D) mm Weight: about 4.0 kg Vertical installation 222 (W) ×114 (H) ×221 (D) mm Weight: about 4.0 kg |
|
Items included in shipment package | DC power connector (DC Power Model only), Power cord (AC power supply model), Rubber foot (4pieces), Product recovery media (with OS pre-installed models), Instruction manual PDF (included on optical media) * Items other than those listed above may be included depending on the configuration on of the system ordered. |
||
Software (OS)*11*12 | Windows® 10 IoT Enterprise 2019 LTSB (Japanese or English selectable) (64bit)*13 Windows® 10 IoT Enterprise 2016 LTSB (Japanese or English selectable) (64bit)*13 |
Optional Hardware Specifications
This table can be scrolled horizontally.
Built-in SSD*2 | 128 GB/512 GB 1 unit mountable | |
---|---|---|
Keyboard | USB109 keys (Japanese OS), 104 keys (English OS) | |
Mouse | USB (Optical) | |
OS shutdown battery*5 |
Battery type | Nickel-metal hydride battery |
Nominal voltage/nominalcapacity | 8.4 V DC/2500 mAh | |
Charging time*14 | About 12 hours | |
Operating time | About 10 min. | |
DI/DO Interface*5 | (DI/DO board) Digital input/output (half-pitch 20-pin) DI 4 points, DO4 points, remote input 1point |
|
RAS Terminal Board | DI 4 points, DO 4 points, remote input 1 point | |
RAS Cable | Half-pitch 20-pin male at both ends, 1m/2m max | |
RAS Terminal Board Mounting Panel | Simplified type | |
Stand | 1 set | |
Instruction Manual (Bound Booklet) | CP30 model 300 unit instruction manual, RAS support software instruction manual |
Installation Environment Conditions
This table can be scrolled horizontally.
without OS shutdown battery | with OS shutdown battery | |||
---|---|---|---|---|
Installation Environment |
Temperature (Operating/While Stored) |
Memory capacity: 4GB | 0 to 50°C / -10 to 60°C | 0 to 40°C / -10 to 50°C |
Memory capacity: 8GB | 0 to 45°C / -10 to 60°C | |||
Humidity (Operating/While Stored) | 20 to 80% RH (no condensation) /10 to 90% RH (no condensation) | |||
Vibration | (Operating) | 4.9 m/s2 or less (JIS C60068-2-6:9 to 150Hz 1 cycle) | ||
(While Packed) | 19.6m/s2 or less | |||
Shock (Operating/While Packed) | 19.6m/s2 or less / 245m/s2 or less | |||
Dust | 0.3 mg/m3 or less (JEITA-IT-1004B Class B compliant) | |||
Corrosive gas / chemicals | Not to be detected (JEITA IT-1004B Class A compliant) | |||
Allowable Instantaneous Power Failure Time | 20 ms or less at the rated input voltage | |||
Allowable Instantaneous Power Failure Time | DC Power Model | - | 1 ms or less at the rated input voltage | |
AC Power Model | 20 ms or less at the rated input voltage |
- *1 Correct operation is not guaranteed except on genuine memory designed for Toshiba's industrial computers.
- *2 The "S.M.A.R.T. (Self Monitoring Analysis and Reporting Technology) data monitoring software " that can be used to predict SSD life is not pre-installed. Customers can install and use the program as required.
- *3 The DisplayPort of the CP30 model 300 supports Display audio systems. To output audio from a display connected to DisplayPort, use a cable and a display compatible with the DisplayPort audio. DisplayPort does not support Multi-Stream Transport (MST). Multiple displays cannot be daisy-chained.
- *4 USB interface does not always guarantee the operation of all the USB peripherals.
- *5 No expansion at customer site because of pre-shipment options.
- *6 PCI Express slot board size (167.65 mm (L) × 68.90 mm (H) or less) mountable.
- *7 To use the digital input/output function, optional hardware is required (DI/DO interface, RAS terminal block and RAS cable).
- *8 AC Power Model has a power supply with a built-in PFC (power factor correction) circuit. If you are using a UPS (uninterrupted power supply), select a sine wave output type.
- *9 The maximum power consumption of the main unit of the DC power supply model is approximately 15 W (without an OS shutdown battery) and 20 W (during charging of an OS shutdown battery) when it is not connected to any expansion boards or other peripherals and is not running any applications after boot-up. The maximum power consumption of the main unit of the AC power supply model is approximately 16 W (without an OS shutdown battery) and 22 W (during charging of an OS shutdown battery) under the same conditions.
- *10 Add 8 mm as the height of rubber feet according to the orientation of installation.
- *11 Of the Operating Systems listed here, your specified OS will be installed. OS supply period is subject to change depending on the OS distribution period of the OS supplier.
- *12 If Windows is in use, the following functions are outside the scope of your support. Windows Bitlocker, Windows XP mode, power-saving modes (suspend, hibernation), Windows fast startup, Windows Hello.
- *13 Please note that Windows® 10 IoT Enterprise 2019 LTSC or Windows® 10 IoT Enterprise 2016 LTSB is the only pre-installation option we support. We do not support any other versions, servicing models or editions. For language selection, select either Japanese or English at the initial setup.
- *14 When power supply is on, the OS shutdown battery is charged, regardless of whether the main unit is running. Before using a new battery for the first time or an existing battery after more than one month of disuse, press the Forced Charge button in the battery compartment and charge it for more than six hours in soft-off mode. More than six hours of charging is necessary to provide for automatic OS shutdown in the event of an interruption of the external power supply.
