Production Specifications Table
| Product | Rack-mount Type (2U size) |
Desktop Type | Slim Type | Rack-mount Type (2U size) | Compact Embedded Type | ||||
|---|---|---|---|---|---|---|---|---|---|

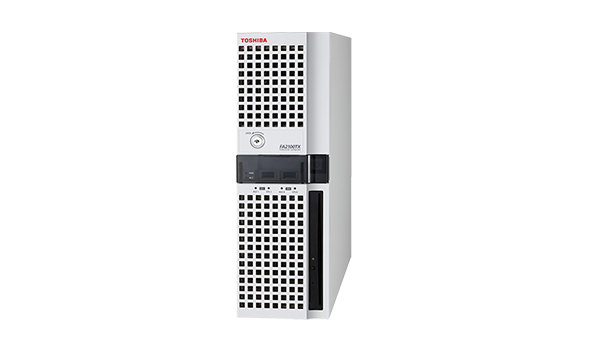

| External view |  |
 |
 |
 |
 |
||||
| Model | FS20000R model 200 |
FS20000R model 100 |
FA3100T model 800 | FA2100TX model 700 | FR2100TX model 700 | CP30 model 300 | |||
| Single Disk Model | RAID Disk Model | Single Disk Model | RAID Disk Model | Single Disk Model | RAID Disk Model | ||||
| Processor | Intel® Xeon® Gold 5218T Processor (2.1GHz) |
Intel® Xeon® Silver 209T Processor (2.2GHz) |
Intel® Xeon® E3-1275 v5(3.6GHz) |
Intel® Xeon® W-1270TE(2.0GHz) |
Intel® Xeon® W-1270TE(2.0GHz) |
Intel Atom® x5-E3940 1.6GHz |
|||
| Chipset | Intel® C621 Chipset | Intel® C236 Chipset | Intel® W480E Chipset | Intel® W480E Chipset | - | ||||
| Maximum Memory Capacity |
With 1CPU: 192GB (32GB x 6) With 2CPUs: 384GB (32GB x 12) |
32GB (16GB x 2) | 32GB | 32GB | 8GB | ||||
| Dimensions (mm) | 430W × 86.8H × 592D | 430W × 170H × 460D | 100W × 310H x 340D | 430W × 87H × 450D | DC Power Model： 114W × 164H*1 × 174D AC Power Model： 114W × 172H*1 × 221D |
||||
| Weight (kg) | Approx. 18 | Approx. 15 | Approx. 10 | Approx. 11 | DC Power Model： Approx. 2.5(3.5) AC Power Model： Approx. 3.0(4.0) |
||||
| RAID | 1/5/10 | - | 1/5 | - | 1 | - | 1 | - | |
| Expantion Slot | |||||||||
| Total | 4 | 7 | 3 | 4 | 1 | ||||
| PCI | - | Full (4) | Half (1) | Full (1), Half (1) | - | ||||
| PCI-Express | 1 CPU: full size×3, half size×1 2 CPU: full size×2, half size×2 |
Full (2), Half(1) |
Half (2) | Full (1), Half (1) | Low profile(1) | ||||
| Operating System | |||||||||
| Windows® 10 IoT Enterprise 2021 LTSC | - | - | ● | ● | - | ||||
| Windows® 10 IoT Enterprise 2019 LTSC | - | ● | ● | ● | ● | ||||
| Windows® 10 IoT Enterprise 2016 LTSB | - | ● | ● | ● | ● | ||||
| Windows® 7 (Pro) | - | ● | - | - | - | ||||
| Windows Server® IoT 2022 | - | - | ● | ● | - | ||||
| Windows Server® IoT 2019 | ● | - | ● | ● | - | ||||
| Windows Server® 2016 | ● | ● | ● | ● | - | ||||
| Windows Server® 2012 R2 | - | ● | - | - | - | ||||
| Linux | ● | ● | ● | ● | - | ||||
| Period of Supply / Maintenance | |||||||||
| Release | 2021/11 | 2019/5 | 2023/10 | 2024/1 | 2019/12 | ||||
| Supply Period (End of Supply) | 5 years (2026/11) |
5 years (2024/5) | 5 years (2028/10) | 5 years (2029/1) | 5 years (2024/12) | ||||
Maintenance Period
|
7 years (2033/11) |
7 years (2031/5) | 7 years (2035/10) | 7 years (2036/1) | 7 years (2031/12) | ||||
- *1 The height dimension (H) changes when the battery for OS shutdown is mounted.
- *2 Maintenance period is shown in years after termination of product sale in the corresponding tables.
