EC20 model 100
The sales of this product ended in April 2018.
Fanless and Compact
EC20 is an industrial computer economy model of high value which embodies high-reliability design technology, 24-hour continuous operation design, high maintainability, and the concept of long-term supply and maintenance based on many years of efforts by Toshiba.
EC20 model 100 employs an Intel Celeron 807UE processor (1.0 GHz), two giga-bit Ethernet channels (standard), four USB2.0 channels (standard), and a display function with a built-in CPU chipset. A highly reliable memory (2 GB) with ECC, a main unit monitoring function for hardware internal check, and SSD (option) combine to support 24-hour continuous, stable operation, which is demanded of industrial computers. This is backed up by product supply and maintenance over a long period of time.
High Reliability Supports Stable Operation
Technology and Quality that Support 24-Hour Continuous Operation
Highly reliable, long-life parts are used, based on assumption of 24-hour continuous operation. The hardware is designed with derating taken into account.
ECC Memory Employed
A highly reliable ECC memory capable of automatic correction of 1-bit memory errors is installed.
Fanless Structure
No cooling fan means no need of periodic fan replacement, no fan noise, no dust taken inside, and no dust blown out.
Main Unit Monitoring Function
Operation over long hours is supported by hardware monitoring (of internal voltage, internal temperature) and watchdog timer monitoring.
Maximum Ease of Use

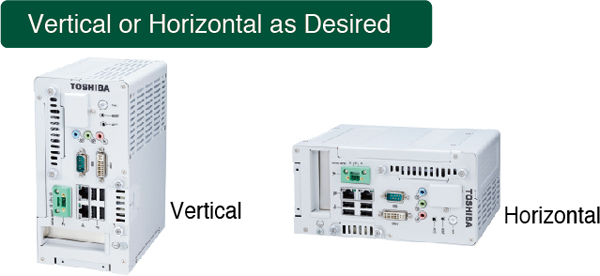

Compact Frame
The frame is so compact that it can be installed in different places.
Remote Shutdown Function
A remote shutdown signal input connector is a standard part, which may be used for safe shutdown in case a UPS (uninterrupted power supply) is attached.

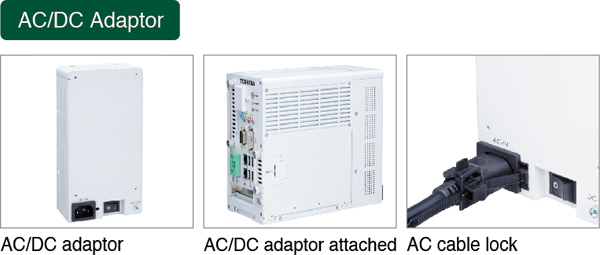

DC Power Drive
DC input is widely used in the industrial field, and apart from it as a standard input, an optional AC/DC adaptor may also be used for driving with AC input.
Long-Term Steady Product Supply Long-Term Maintenance Service
Long-Term Steady Product Supply
The product supply period is five years from the day of product release and the maintenance period is seven years after the end of production. Because product supply is assured over a long period of time, you will be able to add one thing or another to your system, or expand your system step by step without worry.
Good Maintainability

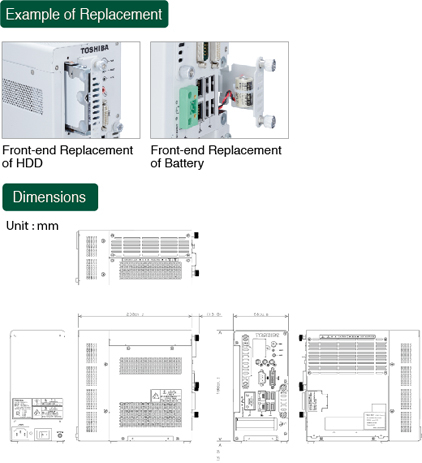

Front access means easy maintenance
Hard disk, SSD, and battery can be easily replaced from the front of the product.
Specifications
This table can be scrolled horizontally.
| EC20 model 100 | Type A | Type B | Type C | Type D | |
|---|---|---|---|---|---|
| Processor | Main Processor | Intel Celeron 807UE (1.0GHz) | |||
| Level 2 Cache | 1 MB (CPU built in) | ||||
| Chipset | Intel HM65 Chipset | ||||
| Main Memory | Memory | DDR3 SDRAM (DDR3-1066/PC3-8500) with ECC check | |||
| Capacity | 2GB (2 GBx1) | ||||
| Auxiliary Storage | With HDD/capacity 500GB | With SSD*1/capacity 64GB | |||
| Interface | COM Interface | RS-232C (9-pinD-SUB)×2ch(rear) | |||
| USB Interface*2 | USBx 2ch(front)(TYPE A USB2.0) | ||||
| Audio Interface*3 | LINE IN/LINE OUT/MIC IN (3.5φ mini jack) | ||||
| Ethernet Interface | 10 BASE-T/100 BASE-TX/1000 BASE-T (automatic switchhing) (RJ45) x 2ch | ||||
| Display Interface | DVI-I×1ch Onboard Display Function | ||||
| Expansion Interface | PCI slot*4 | Low profile x1 slot PCI 2.3 | |||
| Input Device | Keyboard and mouse not supplied as accessories | ||||
| Software | OS (Operating System)*6/*7 | None | Windows® 7 Professional SP1 (Japanese version) (32bit) | None | Windows® 7 Professional SP1 (Japanese version) (32bit) |
| RAS function (Main unit status monitoring function)*5 | Hard disk monitoring (internal voltage, internal temperature), watchdog timer monitoring | ||||
| Power Supply | DC input (built-in) | Allowable voltage: 20.4 to 26.4 VDC (24 VDC -15％ to +10％) Rated current drain: 2.5 A (at 24 V) |
|||
| AC input (Option) | Rated voltage:100/240VAC, allowable voltage: 85 to 264 VAC, allowable frequency: 50/60 Hz±3Hz Power consumption 55 W/110 VA max. |
||||
| Dimensions and Weight | 98 (W) ×198 (H) ×148 (D) mm (without projections) With AC/DC adaptor attached:98 (W) ×198 (H) ×203 (D) mm (without projections) Weight: main unit about 1.95 kg; with AC/DC adaptor about 3.00 kg |
||||
| Rubber foot (For use on desktop) | 4 feet per set | ||||
Installation Environment Conditions
| Installation Environment | Temperature (Operating/Storage) | With HDD: 5 to 40°C/-10 to 50°C With SSD: 5 to 40°C/-10 to 50°C |
|---|---|---|
| Humidity (Operating/Storage) | 20 to 80% RH (no condensation)/10 to 90% RH (no condensation) | |
| Vibration (Operating) | With HDD: 2.0m or less/s2 (JEITA IT-1004A Class B equivalent) With SSD: 6.0m or less/s2 (JEITA IT-1004A Class B equivalent) |
|
| (As Packed) | 19.6m or less/s2 | |
| Shock (Operating/As Packed) | With HDD: 19.6m or less/s2/245m or less/s2 With SSD: 19.6m or less/s2/245m or less/s2 |
|
| Dust (Operating/Storage) | 0.3mg or less/m3 (JEITA IT-1004A Class B compliant) | |
| Corrosive Gas (Operating/Storage) | No to be detected (JEITA IT-1004A Class A equivalent) | |
| Allowable Instantaneous Interruption Time | DC input: 1 ms or less AC input: 20 ms or less |
|
- *1 SSD replacement period varies depending on OS and the conditions of use of applications.
- *2 USB interface does not always guarantee the operation of all the USB devices.
- *3 Use connecting units that meet the specifications below.
- *4 PCI slot board size (121.79 mm (L) x 64.41 mm (H) or less) (half size) mountable
- *5 This function will be included in the product as software after its release.
This table can be scrolled horizontally.
| Terminal | Maximum Voltage | Remarks |
|---|---|---|
| LINE IN | 1.6Vrms | Input impedance 47kΩ |
| LINE OUT | 1.2Vrms | Load impedance 10kΩ to 600kΩ |
| MIC IN | 1.6Vrms | Input impedance 47kΩ |
- *6 OS supply period is subject to change depending on the OS distribution period of the OS supplier.
- *7 Models with OS will have recovery media provided as an accessory.
For OS recovery, you will have to have an external DVD drive ready at your own expense.
