SCiB™ Automotive Starter Battery
A D23 size battery pack that is highly compatible with lead-acid batteries and can be used for many purposes.
The 24V lead-acid replacement battery is equipped with SCiB™ (20Ah-HP) cells and is compliant with the Japanese Industrial Standards (JIS) JIS D 5301. This battery pack is compatible with the D23 size of lead-acid batteries for starters, and can be easily replaced with existing rated voltage 24V lead-acid batteries. It can be used not only as a standalone battery pack, but also in series or parallel connections. It can be used in a wide range of applications, including commercial vehicles such as buses and trucks, as well as construction machinery, agricultural machinery, and ships.

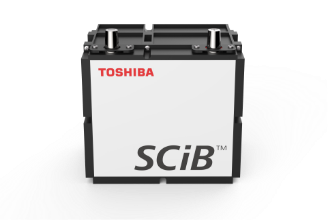

SCiB™ 24V
Starter battery
Contact us for details, sample orders and quotations

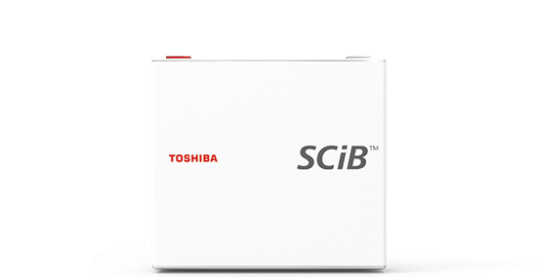

20Ah-HP cell
Size :W116×D22×H106mm
Product Features
Usable even at -30℃
Cycle life of 20,000 times or more
Approximately half the
weight of lead-acid batteries
Low risk of fire or explosion
Can be used in series or parallel, up to 5.67kWh
Not only can it be used alone, but it can also be used for parallel indexing of up to 6 parallels in a 24V configuration, and up to 6 parallels in a 2-series 48V configuration. This allows the capacity to be increased to a maximum of 2.88kWh in a 24V configuration and up to 5.76kWh in a 48V configuration, allowing it to be used in a wide range of applications including small to large 24V vehicles, construction machinery, agricultural machinery, and ships.
Built-in BMU with CAN interface allows retrieval of battery information
This battery pack has a built-in BMU that monitors cell voltage, current, and temperature, and is equipped with a protection circuit that prevents overcharging, over-discharging, and over-temperature. It also has a CAN interface for communication with host devices, so it can be used with batteries such as SOC. Information can be retrieved. It also has a dedicated internal communication function, making it easy to build systems with 2 series and up to 6 parallel connections.
No restrictions on charging locations because of no hydrogen gas generation
High vibration and impact resistance
Dustproof/waterproof performance IPX9K/IPX7
Safety is not compromised
even if over-discharge occurs
Note: Specifications shown herein are not guaranteed values and are subject to change without notice. Battery performance depends on conditions of use.
