Features

Application Example

Lineup

Components

Characteristics

Specifications

Download

Case Study

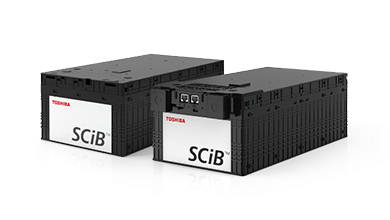

2P12S Modules

Features

Application Example

Lineup

Components

Characteristics

Specifications

Download

Case Study

Features

Application Example

Lineup

Components

Characteristics

Specifications

Download

Case Study

Features

2P12S modules provide enhanced environmental robustness, making them suitable for various applications.
These modules operate at temperatures as low as -30°C and at altitudes of up to 2000 m while providing high withstand voltage and vibration tolerance.

Low risk of fire or explosion

Cycle life of 20,000 times or more

Usable even at -30℃

Large current for both input and output

Rapidly charges to about 80% of the capacity in 12 minutes

Available SOC range of 0 to 100%

* SOC : State of Charge

What is SCiB™

Application Example　

Railway

Cranes

Electric Ships

Electric Power Systems

UPS

Lineup

Standard Module
For industrial devices and stationary systems

Type3-10 / Type3-20HP / Type3-20 / Type3-23* / Type3-26

A versatile battery module available in multiple capacities, commonly used in power storage and marine vessel applications.

Module for Motive Applications
For motive applications, industrial devices and stationary systems

Type1-23*

A battery module with enhanced vibration resistance, suitable for motive applications.

High Heat Dissipation Module
For motive applications, industrial devices and stationary systems

Type4-23

A battery equipped with an aluminum base plate, providing improved heat dissipation performance.

*2P11S modules is also available.

View Product Details

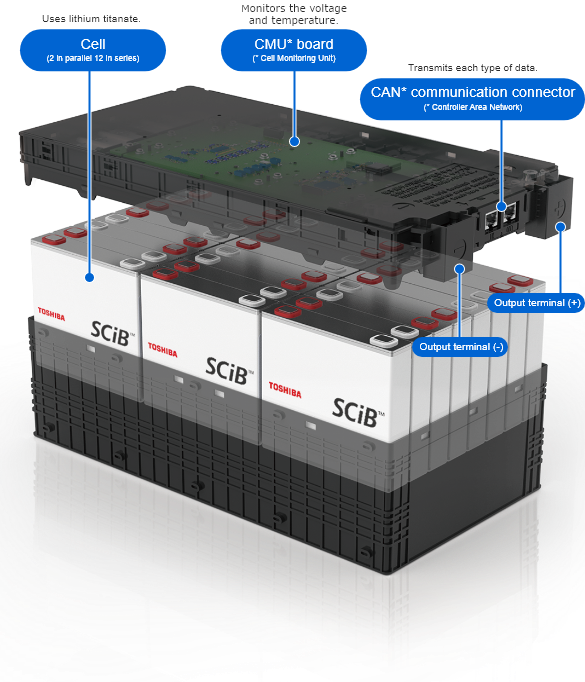

Components

Toshiba offers various components necessary to build battery systems such as BMUs, connectors, and sensors.

View Battery System Components

Characteristics

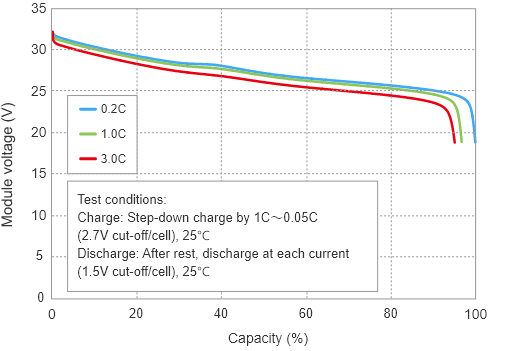

Discharge rate characteristics

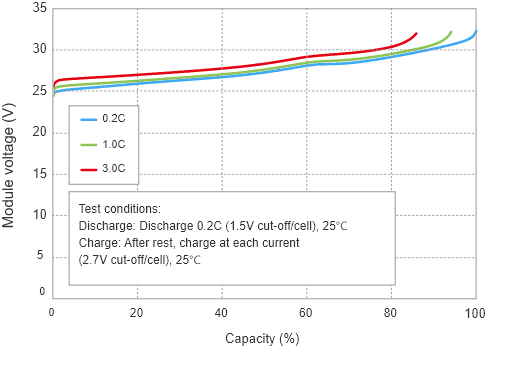

Charge rate characteristics

* The above characteristics are for Type 3-20.
* Specifications shown herein are not guaranteed values and are subject to change without notice. Battery performance depends on conditions of use.
* Product specifications are subject to change without notice.

Product Specifications

Recommended application		For industrial devices and stationary systems
Strength
Product name		Type3-10	Type3-20HP	Type3-20	Type3-23 (2 in Parallel × 11 in Series)	Type3-23 (2 in Parallel × 12 in Series)	Type3-26
Model		FM01202CKA01A	FM01202CCE01A	FM01202CCA04A	FM01102CCB01A	FM01202CCB01A	FM01202CCF01A
Cell configuration		2 in Parallel × 12 in Series (24 pcs of 10Ah cells)	2 in Parallel × 12 in Series (24 pcs of 20Ah-HP cells)	2 in Parallel × 12 in Series (24 pcs of 20Ah cells)	2 in Parallel × 11 in Series (22 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 26Ah cells)
Rated capacity		20 Ah (25°C, 0.2C discharge)	39 Ah (25°C, 0.2C discharge)	40 Ah (25°C, 0.2C discharge)	45 Ah (25°C, 0.2C discharge)	45 Ah (25°C, 0.2C discharge)	51.1 Ah (25°C, 0.2C discharge)
Nominal energy		576Wh	1076Wh	1104Wh	1138Wh	1242Wh	1410Wh
Nominal voltage		28.8V DC	27.6V DC	27.6V DC	25.3V DC	27.6V DC	27.6V DC
Voltage range		21.6 to 32.4V DC	18.0 to 32.4V DC	18.0 to 32.4V DC	16.5 to 29.7V DC	18.0 to 32.4V DC	18.0 to 33.0V DC
Ambient temperature		-20 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃
Ambient humidity		85%RH or less (no condensation)					90%RH or less (no condensation)
Dimensions		W190×D361×H125mm (Protrusions excluded)
Mass		Approx. 14kg	Approx. 15kg	Approx. 14kg	Approx. 14kg	Approx. 15kg	Approx. 15kg
Maximum charge/ discharge current		160A (continuous), 400A (180 s), 500A (10 s), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 500A(10 s), (Not over 60°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 60°C at cell temperature, at 25°C ambient)
Major built-in functions		Cell voltage measurement, module temperature measurement, cell balancing^*1, communication
Standards	Safety^*4	-	UL 1973 (Recognized)^*5	UL 1973 (Recognized)*5 JIS C 8715-2: 2012 IEC62619	UL 1973 (Recognized) ^*5	UL 1973 (Recognized)^*5 JIS C 8715-2: 2012 IEC62619	JIS C 8715-2: 2019
Standards	Ship (Class NK)	-	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5

Recommended application		For industrial devices and stationary systems
Strength
Product name		Type3-10	Type3-20HP	Type3-20	Type3-23 (2 in Parallel × 11 in Series)	Type3-23 (2 in Parallel × 12 in Series)	Type3-26
Model		FM01202CKA01A	FM01202CCE01A	FM01202CCA04A	FM01102CCB01A	FM01202CCB01A	FM01202CCF01A
Cell configuration		2 in Parallel × 12 in Series (24 pcs of 10Ah cells)	2 in Parallel × 12 in Series (24 pcs of 20Ah-HP cells)	2 in Parallel × 12 in Series (24 pcs of 20Ah cells)	2 in Parallel × 11 in Series (22 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 26Ah cells)
Rated capacity		20 Ah (25°C, 0.2C discharge)	39 Ah (25°C, 0.2C discharge)	40 Ah (25°C, 0.2C discharge)	45 Ah (25°C, 0.2C discharge)	45 Ah (25°C, 0.2C discharge)	51.1 Ah (25°C, 0.2C discharge)
Nominal energy		576Wh	1076Wh	1104Wh	1138Wh	1242Wh	1410Wh
Nominal voltage		28.8V DC	27.6V DC	27.6V DC	25.3V DC	27.6V DC	27.6V DC
Voltage range		21.6 to 32.4V DC	18.0 to 32.4V DC	18.0 to 32.4V DC	16.5 to 29.7V DC	18.0 to 32.4V DC	18.0 to 33.0V DC
Ambient temperature		-20 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃
Ambient humidity		85%RH or less (no condensation)					90%RH or less (no condensation)
Dimensions		W190×D361×H125mm (Protrusions excluded)
Mass		Approx. 14kg	Approx. 15kg	Approx. 14kg	Approx. 14kg	Approx. 15kg	Approx. 15kg
Maximum charge/ discharge current		160A (continuous), 400A (180 s), 500A (10 s), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 500A(10 s), (Not over 60°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 60°C at cell temperature, at 25°C ambient)
Major built-in functions		Cell voltage measurement, module temperature measurement, cell balancing^*1, communication
Standards	Safety^*4	-	UL 1973 (Recognized)^*5	UL 1973 (Recognized)*5 JIS C 8715-2: 2012 IEC62619	UL 1973 (Recognized) ^*5	UL 1973 (Recognized)^*5 JIS C 8715-2: 2012 IEC62619	JIS C 8715-2: 2019
Standards	Ship (Class NK)	-	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5

Recommended application		For industrial devices and stationary systems
Strength
Product name		Type3-10	Type3-20HP	Type3-20	Type3-23 (2 in Parallel × 11 in Series)	Type3-23 (2 in Parallel × 12 in Series)	Type3-26
Model		FM01202CKA01A	FM01202CCE01A	FM01202CCA04A	FM01102CCB01A	FM01202CCB01A	FM01202CCF01A
Cell configuration		2 in Parallel × 12 in Series (24 pcs of 10Ah cells)	2 in Parallel × 12 in Series (24 pcs of 20Ah-HP cells)	2 in Parallel × 12 in Series (24 pcs of 20Ah cells)	2 in Parallel × 11 in Series (22 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 26Ah cells)
Rated capacity		20 Ah (25°C, 0.2C discharge)	39 Ah (25°C, 0.2C discharge)	40 Ah (25°C, 0.2C discharge)	45 Ah (25°C, 0.2C discharge)	45 Ah (25°C, 0.2C discharge)	51.1 Ah (25°C, 0.2C discharge)
Nominal energy		576Wh	1076Wh	1104Wh	1138Wh	1242Wh	1410Wh
Nominal voltage		28.8V DC	27.6V DC	27.6V DC	25.3V DC	27.6V DC	27.6V DC
Voltage range		21.6 to 32.4V DC	18.0 to 32.4V DC	18.0 to 32.4V DC	16.5 to 29.7V DC	18.0 to 32.4V DC	18.0 to 33.0V DC
Ambient temperature		-20 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃
Ambient humidity		85%RH or less (no condensation)					90%RH or less (no condensation)
Dimensions		W190×D361×H125mm (Protrusions excluded)
Mass		Approx. 14kg	Approx. 15kg	Approx. 14kg	Approx. 14kg	Approx. 15kg	Approx. 15kg
Maximum charge/ discharge current		160A (continuous), 400A (180 s), 500A (10 s), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 500A(10 s), (Not over 60°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 60°C at cell temperature, at 25°C ambient)
Major built-in functions		Cell voltage measurement, module temperature measurement, cell balancing^*1, communication
Standards	Safety^*4	-	UL 1973 (Recognized)^*5	UL 1973 (Recognized)*5 JIS C 8715-2: 2012 IEC62619	UL 1973 (Recognized) ^*5	UL 1973 (Recognized)^*5 JIS C 8715-2: 2012 IEC62619	JIS C 8715-2: 2019
Standards	Ship (Class NK)	-	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5

Recommended application		For industrial devices and stationary systems
Strength
Product name		Type3-10	Type3-20HP	Type3-20	Type3-23 (2 in Parallel × 11 in Series)	Type3-23 (2 in Parallel × 12 in Series)	Type3-26
Model		FM01202CKA01A	FM01202CCE01A	FM01202CCA04A	FM01102CCB01A	FM01202CCB01A	FM01202CCF01A
Cell configuration		2 in Parallel × 12 in Series (24 pcs of 10Ah cells)	2 in Parallel × 12 in Series (24 pcs of 20Ah-HP cells)	2 in Parallel × 12 in Series (24 pcs of 20Ah cells)	2 in Parallel × 11 in Series (22 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 26Ah cells)
Rated capacity		20 Ah (25°C, 0.2C discharge)	39 Ah (25°C, 0.2C discharge)	40 Ah (25°C, 0.2C discharge)	45 Ah (25°C, 0.2C discharge)	45 Ah (25°C, 0.2C discharge)	51.1 Ah (25°C, 0.2C discharge)
Nominal energy		576Wh	1076Wh	1104Wh	1138Wh	1242Wh	1410Wh
Nominal voltage		28.8V DC	27.6V DC	27.6V DC	25.3V DC	27.6V DC	27.6V DC
Voltage range		21.6 to 32.4V DC	18.0 to 32.4V DC	18.0 to 32.4V DC	16.5 to 29.7V DC	18.0 to 32.4V DC	18.0 to 33.0V DC
Ambient temperature		-20 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃	-30 to 45℃
Ambient humidity		85%RH or less (no condensation)					90%RH or less (no condensation)
Dimensions		W190×D361×H125mm (Protrusions excluded)
Mass		Approx. 14kg	Approx. 15kg	Approx. 14kg	Approx. 14kg	Approx. 15kg	Approx. 15kg
Maximum charge/ discharge current		160A (continuous), 400A (180 s), 500A (10 s), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 500A(10 s), (Not over 60°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 60°C at cell temperature, at 25°C ambient)
Major built-in functions		Cell voltage measurement, module temperature measurement, cell balancing^*1, communication
Standards	Safety^*4	-	UL 1973 (Recognized)^*5	UL 1973 (Recognized)*5 JIS C 8715-2: 2012 IEC62619	UL 1973 (Recognized) ^*5	UL 1973 (Recognized)^*5 JIS C 8715-2: 2012 IEC62619	JIS C 8715-2: 2019
Standards	Ship (Class NK)	-	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5

Recommended application		For motive application^*2, industrial devices, and stationary systems
Strength		Vibration Resistance		High Heat Dissipation
Product name		Type1-23 (2 in Parallel × 11 in Series)	Type1-23 (2 in Parallel × 12 in Series)	2P12S module Type4-23
Model		FM01102CCB02A	FM01202CCB02A	FM01202CCB04A
Cell configuration		2 in Parallel × 11 in Series (22 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 23Ah cells)
Rated capacity		45Ah (25°C, 0.2C discharge)	45Ah (25°C, 0.2C discharge)	45Ah (25°C, 0.2C discharge)
Nominal energy		1138Wh	1242Wh	1242Wh
Nominal voltage		25.3V DC	27.6V DC	27.6V DC
Voltage range		16.5 to 29.7V DC	18.0 to 32.4V DC	18.0 to 32.4V DC
Ambient temperature		-30 to 45°C		-30 to 50°C
Ambient humidity		85%RH or less (no condensation)		90%RH or less (no condensation)
Dimensions		W190×D361×H125mm (Protrusions excluded)		W204×D395×H135mm (Protrusions excluded)
Mass		Approx. 14kg	Approx. 15kg	Approx. 16.5kg
Maximum charge/ discharge current		160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	Over^3 160A (continuous), Over^3 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)
Major built-in functions		Cell voltage measurement, module temperature measurement, cell balancing^*1, communication
Standards	Safety^*4	―	UL 1973 (Recognized)^*5 JIS C 8715-2: 2012 IEC62619	UL 1973 (Recognized)^*5
Standards	Ship (Class NK)	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	―

Recommended application		For motive application^*2, industrial devices, and stationary systems
Strength		Vibration Resistance		High Heat Dissipation
Product name		Type1-23 (2 in Parallel × 11 in Series)	Type1-23 (2 in Parallel × 12 in Series)	2P12S module Type4-23
Model		FM01102CCB02A	FM01202CCB02A	FM01202CCB04A
Cell configuration		2 in Parallel × 11 in Series (22 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 23Ah cells)	2 in Parallel × 12 in Series (24 pcs of 23Ah cells)
Rated capacity		45Ah (25°C, 0.2C discharge)	45Ah (25°C, 0.2C discharge)	45Ah (25°C, 0.2C discharge)
Nominal energy		1138Wh	1242Wh	1242Wh
Nominal voltage		25.3V DC	27.6V DC	27.6V DC
Voltage range		16.5 to 29.7V DC	18.0 to 32.4V DC	18.0 to 32.4V DC
Ambient temperature		-30 to 45°C		-30 to 50°C
Ambient humidity		85%RH or less (no condensation)		90%RH or less (no condensation)
Dimensions		W190×D361×H125mm (Protrusions excluded)		W204×D395×H135mm (Protrusions excluded)
Mass		Approx. 14kg	Approx. 15kg	Approx. 16.5kg
Maximum charge/ discharge current		160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	160A (continuous), 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)	Over^3 160A (continuous), Over^3 350A (rush current), (Not over 55°C at cell temperature, at 25°C ambient)
Major built-in functions		Cell voltage measurement, module temperature measurement, cell balancing^*1, communication
Standards	Safety^*4	―	UL 1973 (Recognized)^*5 JIS C 8715-2: 2012 IEC62619	UL 1973 (Recognized)^*5
Standards	Ship (Class NK)	Type approval certificate for lithium-ion battery system^*5	Type approval certificate for lithium-ion battery system^*5	―

*1 Function to even differences in voltage among cells connected in series
*2 Motive applications as specified in IEC 62619:2022.
*3 Value at the time of combination of water cooling plate or forced-air cooling. (The cooling system shall be arranged by the customer.)
*4 Certified by Intertek for UL 1973, and by JET (Japan Electrical Safety & Environment Technology Laboratory) for JIS C 8715-2 and IEC62619.
*5 The certification applies at the component level only. Additional certification is required for the complete battery system.

Note: Specifications shown herein are not guaranteed values and are subject to change without notice. Battery performance depends on conditions of use.
