Gas Insulated Switchgears (GIS)
(72.5 kV to 800 kV)
Toshiba manufactures Gas Insulated Switchgears (GIS) up to 800 kV. Toshiba is a Global Leader in the market for over 40 years with highest reliability. World's first supplies include 800kV GIS in 1985, 550kV- 63kA single break GCB in 1993.
USPs
- Safe & Reliable Operation With Minimal Maintenance
- Compactness & Indoor / Outdoor Compatibility

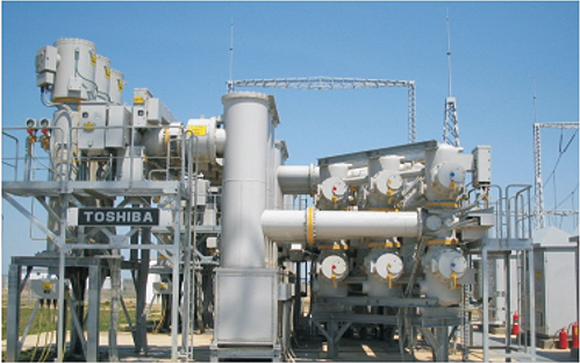

- Outdoor GIS : Built To Survive In Extreme Environmental Conditions Like Snowy Regions, Deserts, Coastal Regions Etc.,
- We provide Full Turnkey Solutions for GIS Substations up to 800kv.
- Customer Satisfaction Is Our Top Priority.
- No Compromise in Quality.
- Better Aesthetics
| Ratings | 72.5 - 145 kV | 175 - 245 kV | 362 - 420 kV | 550 - 800 kV |
|---|---|---|---|---|
| Rated Voltage | 72.5 kV /145 kV | 245 kV | 420 kV | 800 kV |
| Rated Current | Up to 3150 A | Up to 4000 A | Up to 4000/ 6000 A | Up to 5000/ 6000 A |
| Rated Short Time Withstand Current | Up to 40 kA – 3 sec | Up to 50 kA – 3 sec | Up to 63/ 80 kA – 3 sec | Up to 50 kA – 3 sec |
| Rated Frequency | 50/ 60 Hz | 50 Hz | 50/ 60 Hz | 50 Hz |
| Applied Standards | IEC | IEC | IEC | IEC |
Technical Parameters of the products contained in this website are generic in nature. Please contact
sales.gis@toshiba-ttdi.com for any Latest / Updated / Specific Information on Gas Insulated Switchgears.
