GaN HEMTs
GaN HEMTs（Gallium Nitride High Electron Mobility Transistor）GaN is a compound semiconductor with several times the output power capability of GaAs.
Products
Select the frequency band for our product line.

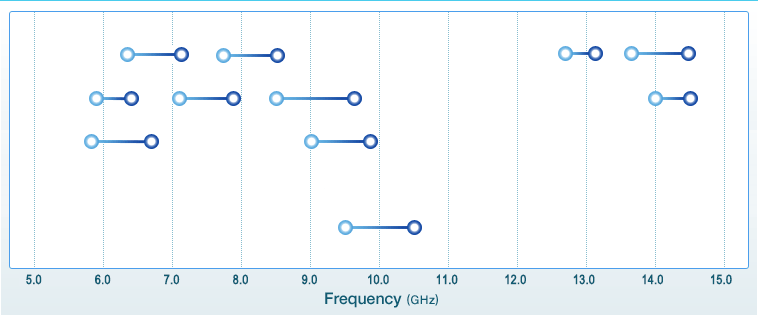

Check the output power vs. frequency map for your convenience.
▼ PDF file size : 71KB - 212KB
-
New Product
This table can be scrolled horizontally.
| MODEL No. (DATA SHEET) |
FREQUENCY BAND(GHz) |
BIAS CONDITIONS | Pout(dBm) TYP. |
IDS(A) TYP. |
ηadd(%) TYP. |
GL(dB) TYP. |
IM3(dBc) MIN. |
PKG CODE |
S-parameters |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDS (V) |
IDSset (A) |
＠Pin (dBm) |
＠Pin (dBm) |
Po@SCL (dBm) |

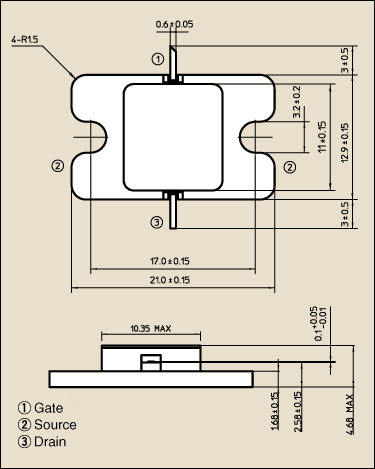

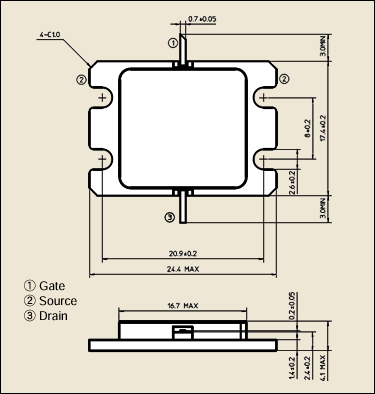

|||||||||
| TGI5867-25L(PDF) | 5.85-6.75 | 24 | 1.75 | 44.5 | 2.7 | 39 | 35 | 13.5 | 20 | -40 | 29 | 7-AA04A | Download |
| TGI5867-50L(PDF) | 5.85-6.75 | 24 | 3.0 | 47.0 | 5.4 | 33 | 40 | 13.5 | 20 | -40 | 32 | 7-AA04A | Download |
| TGI5867-60LHA(PDF) | 5.85-6.75 | 40 | 0.4 | 48.0 | 3.5 | 38 | 40 | 12.5 | 20 | -25 | 41 | 7-AA04A | Download |
| TGI5867-130LHA(PDF) | 5.85-6.75 | 40 | 0.8 | 51.0 | 7.0 | 38 | 43 | 12.5 | 20 | -25 | 44 | 7-AA06A | Download |
This table can be scrolled horizontally.
| MODEL No. (DATA SHEET) |
FREQUENCY BAND(GHz) |
BIAS CONDITIONS | Pout(dBm) TYP. |
IDS(A) TYP. |
ηadd(%) TYP. |
GL(dB) TYP. |
IM3(dBc) MIN. |
PKG CODE |
S-parameters |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDS (V) |
IDSset (A) |
＠Pin (dBm) |
＠Pin (dBm) |
Po@SCL (dBm) |
|||||||||
| TGI5964-120L(PDF) | 5.9-6.4 | 24 | 4.0 | 51.0 | 10.0 | 42 | 43 | 13.5 | 20 | -25 | 44 | 7-AA06A | Download |
This table can be scrolled horizontally.
| MODEL No. (DATA SHEET) |
FREQUENCY BAND(GHz) |
BIAS CONDITIONS | Pout(dBm) TYP. |
IDS(A) TYP. |
ηadd(%) TYP. |
GL(dB) TYP. |
IM3(dBc) MIN. |
PKG CODE |
S-parameters |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDS (V) |
IDSset (A) |
＠Pin (dBm) |
＠Pin (dBm) |
Po@SCL (dBm) |
|||||||||
| TGI6472-120L(PDF) | 6.4-7.2 | 24 | 4.0 | 51.0 | 11.0 | 38 | 44 | 11.5 | 20 | -25 | 44 | 7-AA06A | Download |
This table can be scrolled horizontally.
| MODEL No. (DATA SHEET) |
FREQUENCY BAND(GHz) |
BIAS CONDITIONS | Pout(dBm) TYP. |
IDS(A) TYP. |
ηadd(%) TYP. |
GL(dB) TYP. |
IM3(dBc) MIN. |
PKG CODE |
S-parameters |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDS (V) |
IDSset (A) |
＠Pin (dBm) |
＠Pin (dBm) |
Po@SCL (dBm) |
|||||||||
| TGI7179-60LHA(PDF) | 7.1-7.9 | 40 | 0.4 | 48.0 | 3.5 | 37 | 40.5 | 12.0 | 20 | -25 | 41 | 7-AA04A | Download |
| TGI7179-130LHA(PDF) | 7.1-7.9 | 40 | 0.8 | 51.0 | 7.0 | 36 | 43.5 | 12.0 | 20 | -25 | 44 | 7-AA06A | Download |
This table can be scrolled horizontally.
| MODEL No. (DATA SHEET) |
FREQUENCY BAND(GHz) |
BIAS CONDITIONS | Pout(dBm) TYP. |
IDS(A) TYP. |
ηadd(%) TYP. |
GL(dB) TYP. |
IM3(dBc) MIN. |
PKG CODE |
S-parameters |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDS (V) |
IDSset (A) |
＠Pin (dBm) |
＠Pin (dBm) |
Po@SCL (dBm) |
|||||||||
| TGI7785-25L(PDF) | 7.7-8.5 | 24 | 1.75 | 44.5 | 2.7 | 39 | 35 | 12.0 | 20 | -40 | 29 | 7-AA04A | Download |
| TGI7785-50L(PDF) | 7.7-8.5 | 24 | 3.0 | 47.0 | 5.0 | 33 | 40 | 11.0 | 20 | -40 | 32 | 7-AA04A | Download |
| TGI7785-60LHA(PDF) | 7.7-8.5 | 40 | 0.4 | 48.0 | 4.0 | 32 | 41 | 11.5 | 20 | -25 | 41 | 7-AA04A | Download |
| TGI7785-120L(PDF) | 7.7-8.5 | 24 | 4.0 | 51.0 | 10.0 | 42 | 44 | 11.0 | 20 | -25 | 44 | 7-AA06A | Download |
| TGI7785-130LHA(PDF) | 7.7-8.5 | 40 | 0.8 | 51.0 | 7.0 | 36 | 44 | 11.5 | 20 | -25 | 44 | 7-AA06A | Download |
This table can be scrolled horizontally.
| MODEL No. (DATA SHEET) |
FREQUENCY BAND(GHz) |
BIAS CONDITIONS | Pout(dBm) TYP. |
IDS(A) TYP. |
ηadd(%) TYP. |
GL(dB) TYP. |
PKG CODE |
S-parameters |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDS (V) |
IDSset (A) |
＠Pin (dBm) |
＠Pin (dBm) |
||||||||
| TGI8596-50(PDF) | 8.5-9.6 | 24 | 1.5 | 47.0 | 5.0 | 31 | 41 | 9.0 | 20 | 7-AA04A | Download |
| TGI0910-50(PDF) | 9.5-10.5 | 24 | 1.5 | 47.0 | 5.0 | 31 | 41 | 9.0 | 20 | 7-AA04A | Download |
This table can be scrolled horizontally.
| MODEL No. (DATA SHEET) |
FREQUENCY BAND(GHz) |
BIAS CONDITIONS | Pout(dBm) TYP. |
IDS(A) TYP. |
ηadd(%) TYP. |
GL(dB) TYP. |
PKG CODE |
S-parameters |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDS (V) |
IDSset (A) |
＠Pin (dBm) |
＠Pin (dBm) |

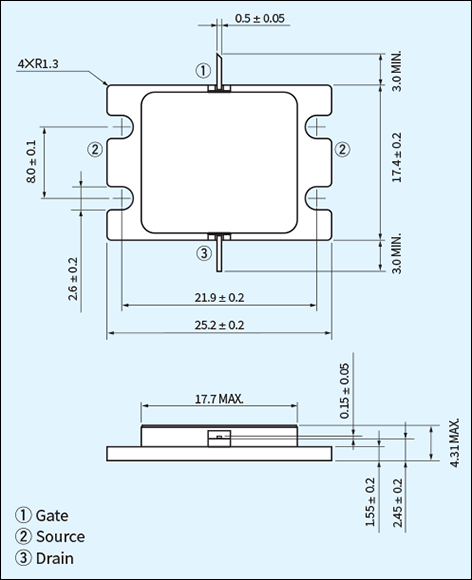

||||||||
| TGI9098-100P(PDF)※ | 9.0-9.8 | 24 | 6.0 | 50.0 | 10.0 | 40 | 42 | 12.0 | 35 | 7-AA03B | Download |
-
※ Pulse Operation
This table can be scrolled horizontally.
| MODEL No. (DATA SHEET) |
FREQUENCY BAND(GHz) |
BIAS CONDITIONS | Pout(dBm) TYP. |
IDS(A) TYP. |
ηadd(%) TYP. |
GL(dB) TYP. |
IM3(dBc) MIN. |
PKG CODE |
S-parameters |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDS (V) |
IDSset (A) |
＠Pin (dBm) |
＠Pin (dBm) |
Po@SCL (dBm) |

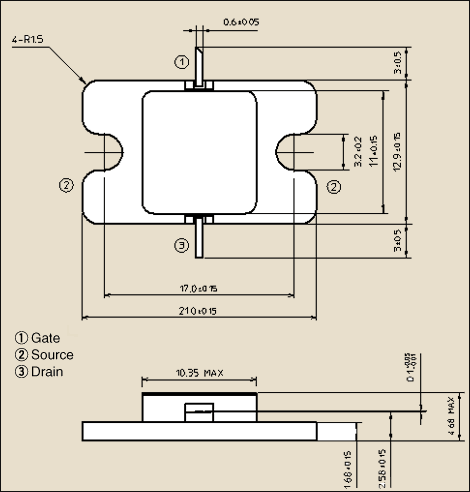

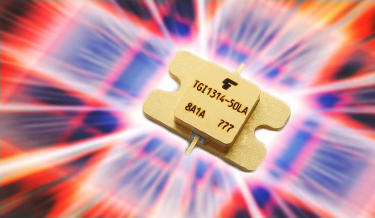

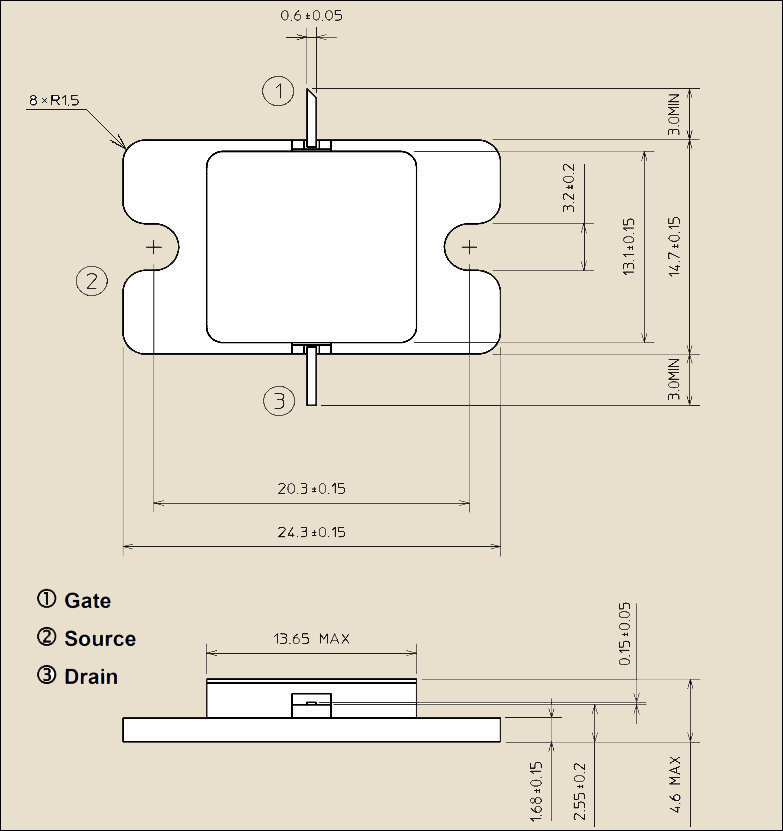

|||||||||
| TGI1213-25LA(PDF) | 12.7-13.2 | 24 | 1.0 | 44.0 | 2.5 | 29 | 39 | 8.0 | 20 | -25 | 37 | 7-AA07A | Download |
| TGI1213-50LA(PDF) | 12.7-13.2 | 24 | 2.0 | 47.0 | 5.0 | 29 | 42 | 8.0 | 20 | -25 | 40 | 7-AA07A | Download |
| TGI1314-25LA(PDF) | 13.75-14.5 | 24 | 1.0 | 44.0 | 2.5 | 29 | 39 | 8.0 | 20 | -25 | 37 | 7-AA07A | Download |
| TGI1314-50LA(PDF) | 13.75-14.5 | 24 | 2.0 | 47.0 | 5.0 | 29 | 42 | 8.0 | 20 | -25 | 40 | 7-AA07A | Download |
| TGI1314-100LPHA (PDF) | 13.75-14.5 | 40 | 0.8 | 51.0 | 7.5 | 33 | 44 | 10.0 | 20 | -25 | 43 | 7-AA13A | Download |
-
※ Pulse Operation
