Product lineup

SCiB™ modules consist of multiple cells to obtain necessary capacity and voltage. SCiB™ modules incorporate cell monitoring units (CMUs) for monitoring and transmitting cell voltage and temperature information. They are used to build SCiB™ systems. A battery pack contains a battery management unit (BMU) to control charge/discharge as well as monitor the cell voltage and temperature, eliminating the need to add external protection circuitry and thus simplifying their use.

Modules

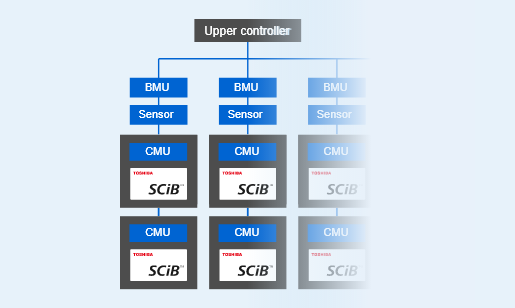

You can construct a battery system by flexibly combining a single to tens of thousands of SCiB™ modules with other components according to your applications.

Pack (Battery module with BMU)

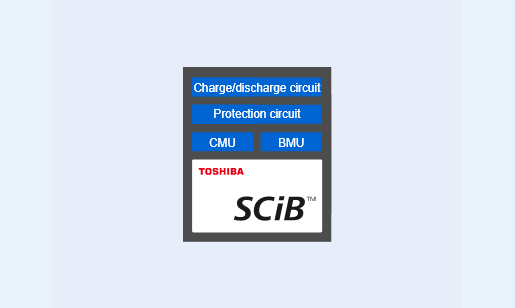

Battery packs incorporate a BMU for monitoring cell voltage and temperature; overcharge, over-discharge, and over-temperature protection system; and a charge/discharge control. That can allow you to simply configure your battery system.

Modules


2P12S modules
For industrial devices and stationary systems
Type3-20 / Type3-23

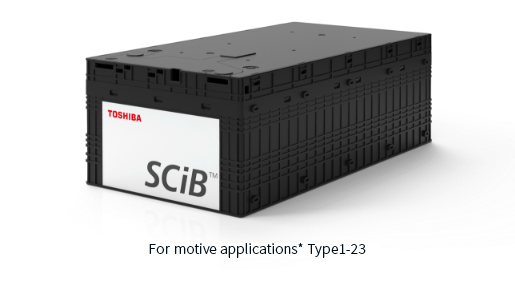

For automotive Type1-23

The Type3-20, Type3-23, and Type1-23 modules consist of 12-series of two parallel SCiB™ cells. They can be used for stationary applications such as UPS systems and energy storage systems for power plants; cranes and other industrial applications; marine vessels, railways, and other mobile applications.

For industrial devices and stationary systems

For automotive

27.6V 40Ah/45Ah

Pack (Battery module with BMU)


SCiB™ Industrial Pack

These 24V and 48V battery packs can charge and discharge at high current of up to 125 A (for 200 seconds). They are suitable for automated guided vehicles (AGVs) and other small transport vehicles, since only a small degree of capacity degradation will occur even after thousands of charge/discharge cycles. The 24V and 48V battery packs are physically smaller than typical lead-acid batteries and their weight is only roughly one-fourth that of lead-acid batteries. Furthermore, they operate at temperatures as low as -30°C.

For industrial devices and stationary systems

Industrial Pack

24V 22Ah/44Ah

48V 22Ah

Product specifications


Modules

Application
For industrial devices and stationary systems For automotive
Product name 2P12S module Type3-20 2P12S module Type3-23 2P12S module Type1-23
Model FM01202CCA04A FM01202CCB01A FM01202CCB02A
Cell configuration 2 in Parallel × 12 in Series
(24 pcs of 20Ah cells)
2 in Parallel × 12 in Series (24 pcs of 23Ah cells)
Nominal capacity 40Ah (25°C, at 8A discharge) 45Ah (25°C, at 9A discharge)
Nominal voltage DC27.6V
Voltage range 18.0 to 32.4V
Ambient temperature -30 to 45℃
Ambient humidity 85%RH or less (no condensation)
Dimensions W190×D361×H125mm (Protrusions excluded)
Weight Approx. 14kg Approx. 15kg
Maximum charge/
discharge current
160A (charge/discharge), 300A (charge/discharge, 10s),(Not over 55°C at module temperature, at 25°C ambient) 160A (charge/discharge), 350A (charge/discharge, 10s),(Not over 55°C at cell temperature, at 25°C ambient)
Major built-in
functions
Cell voltage measurement, module temperature measurement, cell balancing*, communication (CAN)
* Function to even differences in voltage among cells connected in series
Application
For industrial devices and stationary systems For automotive
Product name 2P12S module Type3-20 2P12S module Type3-23 2P12S module Type1-23
Model FM01202CCA04A FM01202CCB01A FM01202CCB02A
Cell configuration 2 in Parallel × 12 in Series
(24 pcs of 20Ah cells)
2 in Parallel × 12 in Series (24 pcs of 23Ah cells)
Nominal capacity 40Ah (25°C, at 8A discharge) 45Ah (25°C, at 9A discharge)
Nominal voltage DC27.6V
Voltage range 18.0 to 32.4V
Ambient temperature -30 to 45℃
Ambient humidity 85%RH or less (no condensation)
Dimensions W190×D361×H125mm (Protrusions excluded)
Weight Approx. 14kg Approx. 15kg
Maximum charge/
discharge current
160A (charge/discharge), 300A (charge/discharge, 10s),(Not over 55°C at module temperature, at 25°C ambient) 160A (charge/discharge), 350A (charge/discharge, 10s),(Not over 55°C at cell temperature, at 25°C ambient)
Major built-in
functions
Cell voltage measurement, module temperature measurement, cell balancing*, communication (CAN)
* Function to even differences in voltage among cells connected in series



* Specifications shown herein are not guaranteed values and are subject to change without notice. Battery performance depends on conditions of use.


Pack

Application For industrial devices and stationary systems
Product name SCiB™ Industrial Pack (24V) [*1] SCiB™ Industrial Pack (48V) [*2]
Model FP01101MCB01A FP01101MCB02A
Nominal capacity 22Ah、556Wh 44Ah、1112Wh 22Ah、1112Wh
Nominal voltage DC25.3V DC50.6V
Ambient temperature -30 to 45℃
Ambient humidity 85%RH or less (no condensation)
Max.charge/
dischargecurrent
125A(200 sec) 125A(200 sec)
Dimensions W247 × D188 × H165mm Usingthetwounits
described on the left hand
Using two units
(W247×D188×H165mm)
Weight Approx. 8kg Approx. 16kg Approx. 16kg
Remarks Using one module Using two units
of [*1] in parallel
Using two units of [*2] in series
Application For industrial devices and stationary systems
Product name SCiB™ Industrial Pack (24V) [*1] SCiB™ Industrial Pack (48V) [*2]
Model FP01101MCB01A FP01101MCB02A
Nominal capacity 22Ah、556Wh 44Ah、1112Wh 22Ah、1112Wh
Nominal voltage DC25.3V DC50.6V
Ambient temperature -30 to 45℃
Ambient humidity 85%RH or less (no condensation)
Max.charge/
dischargecurrent
125A(200 sec) 125A(200 sec)
Dimensions W247 × D188 × H165mm Usingthetwounits
described on the left hand
Using two units
(W247×D188×H165mm)
Weight Approx. 8kg Approx. 16kg Approx. 16kg
Remarks Using one module Using two units
of [*1] in parallel
Using two units of [*2] in series



* Specifications shown herein are not guaranteed values and are subject to change without notice. Battery performance depends on conditions of use.
