• Industrial Lithium-ion Battery SCiB™ Industrial Pack series
Industrial Lithium-ion Battery SCiB™ Industrial Pack series

Feature


Safety

Toshiba Industrial lithium-ion Battery
High safety, and charge anywhere

No emission of hydrogen gas. You can charge SCiB™ Industrial Pack, anywhere.

Hydrogen gas is generated when a lead-acid battery is overcharged, potentially causing ignition. Toshiba industrial lithium-ion battery SCiB™ Industrial Pack do not emit a hazardous hydrogen gas and can be easily charged at worksites.

English click on the subtitles button.

There is lower risk of lithium deposition. SCiB™ can be used safely for a long time!

In case of conventional lithium-ion batteries, there is a risk of lithium metal deposition, which could break separator and cause internal short circuit when it is used for long period of time, under very cold temperature, or with high charging current. There is lower risk of lithium metal deposition in case of SCiB™.

English click on the subtitles button.

Resistance of an internally-short-circuited area increases and reduces the short-circuit current.

Even in case of internal short circuit, there is lower risk of smoke or ignition on SCiB™ because it reduces short circuit current due to increase of resistance around internal short circuit area.

English click on the subtitles button.

Compliance with safety standards

SCiB™ 23Ah cells and Industrial Pack comply with various safety standards.

English click on the subtitles button.


Rapid Charging

Toshiba Industrial lithium-ion Battery
Charging completes within 1 hour!
(20-minute charging is even possible)

Rapid charging in only one hour!

It took 8 hours to charge a lead-acid battery, but SCiB™ Industrial Pack can drastically reduce the charging time. It can be charged even within 20 minutes if corresponding charger is available.

English click on the subtitles button.

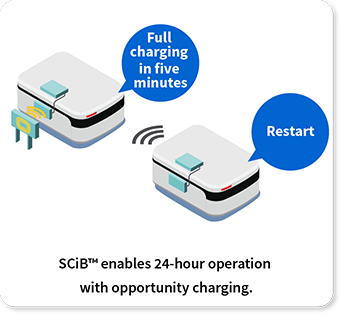

Improve operational efficiency by reduction
of charging time!

Rapid charging drastically reduces downtime caused by battery charging. Operations with a minimum number of AGVs enhance operational efficiency of AGVs.

English click on the subtitles button.


Long Life

Toshiba Industrial lithium-ion Battery
Long life of 10 years reduces the total cost!

SCiB™ can be used for more than 20,000 cycles

Actual measurement data have proven that SCiB™ cells keep more than 70% of capacity after 20,000 times of SOC*100% charge-discharge cycles. There will be almost no capacity degradation expected after 20,000 times of SOC50%-90% charge-discharge cycles.

*SOC: State of Charge

English click on the subtitles button.

SCiB™ Industrial Pack can be used for 10 years, more than 3 times longer than lead-acid batteries!

SCiB™ Industrial Pack does not require replacement for long time and reduces total cost of ownership!
It is also maintenance free!

English click on the subtitles button.

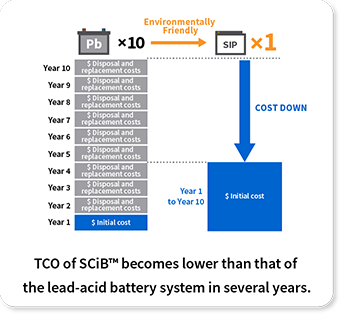

Total cost is lower because of long life!

Although lead-acid battery is cheaper if only considering the initial cost, you can enjoy lower total cost of ownership by SCiB™ Industrial Pack in the long run.

English click on the subtitles button.

SCiB™ Industrial Pack is environment-friendly thanks to longer life and less waste.

The longer life cycle reduces the environmental impact.

English click on the subtitles button.


Compact & Light

oshiba Industrial lithium-ion Battery
The smaller size reduces the load when replacing
with the charged battery.

Only 8kg! 1/4 the weight of a lead-acid battery

A lead-acid battery is large and heavy, and charging and replacing is hard work. However, the weight of Toshiba industrial lithium-ion battery SCiB™ Industrial Pack is a quarter (8 kg) of a lead-acid battery! This new lightweight battery reduces the workload.

English click on the subtitles button.


External Interface

Toshiba Industrial lithium-ion Battery

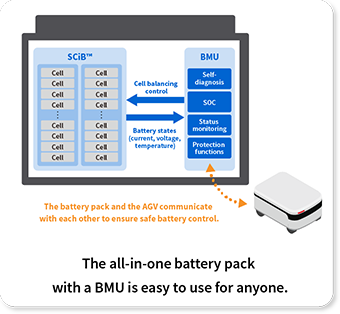

Reliable battery management

One-package solution!

Built-in BMU monitors the battery status, notify it to upper controller and protects the battery from abnormality (Over charge, Over discharge, Over current, High temperature).


Easy Replacement

Toshiba Industrial lithium-ion Battery
Easy replacement from lead-acid batteries

No complicated wiring! Ready to use upon installation!

Conventional lithium-ion battery need to be carefully handled and complicated circuit need to be combined for charge/discharge, protection and safety. However, it is simple to use Toshiba industrial lithium-ion battery SCiB™ Industrial Pack and you only need to turn on the start signal. Output circuit is designed to be interrupted when you turn off the signal.


Low Temperature

Toshiba Industrial lithium-ion Battery
Resistance to low temperature

SCiB™ outputs 70% or higher capacity even when the surrounding temperature is at -30℃.

In case of conventional lithium-ion batteries, there is a risk of lithium metal deposition, which could break separator and cause internal short circuit under low temperature. There is no risk of lithium metal deposition in case of SCiB™.

English click on the subtitles button.

Applications

Various introduction examples

Rapid charging
Continuous and frequent operation
Reliability・ Safety
Low temperature
Frequency regulation
Power regeneration

Customer's opinion

Automatic guided vehicle manufacturer A

We proposed the rapid charge with automatic charging systems to an automobile
manufacturer and our proposal was adopted.

Leasing company B

Cost-effectiveness of a long-life (20,000 cycles) and maintenance-free battery was a
determining factor.

Electronic device manufacturer C

We couldn't find a battery appropriate to the inductive charging,
and we were at a loss. However, we finally encountered the SCiB™ Industrial Pack.

Automobile manufacturer D

It was a harsh task to remove and install heavy lead-acid battery.
However, SCiB™ Industrial Pack made our work much easier.

Toshiba Industrial Lithium-ion Battery SCiB™ Industrial Pack
Product specifications

Product name SCiB™ Industrial Pack (24V) SCiB™ Industrial Pack (48V)
Model FP01101MCB01A FP01101MCB01A×2 FP01101MCB02A×2
Module
configuration
Single configuration 2 in parallel 2 in series
Module
configuration image
556wh 1112wh
1112wh
Nominal voltage DC25.3V DC50.6V
Voltage range DC16.5 to 29.7V DC33.0 to 59.4V
Rated capacity 556Wh (22Ah) 1112Wh (44Ah) 1112Wh (22Ah)
Maximum
allowable
current
125A (200 seconds) 150A (200 seconds)
125A (200 seconds)
Charging
method
CCCV (V=28.6V) CCCV (V=57.2V)
Dimensions W247 x D188 x H165mm Using the two batteries described
on the left hand side
Using two batteries (W247 x D188 x H165mm)
Weight Approx. 8kg
Approx. 16kg Approx. 16kg
Ambient
temperature
for use
-30 to 45℃
Ambient
temperature
for storage
-30 to 55℃ (35°C or less is recommended)
Humidity for use /
storage
85%RH or less (without dew condensation)
Dust-proof
Water-proof
IP53 or equivalent
Protection
function
Over charge protection, Over discharge protection, High temperature protection, Low temperature protection
Product name SCiB™ Industrial Pack (24V) SCiB™ Industrial Pack (48V)
Model FP01101MCB01A FP01101MCB01A×2 FP01101MCB02A×2
Module
configuration
Single configuration 2 in parallel 2 in series
Module
configuration image
556wh 1112wh
1112wh
Nominal voltage DC25.3V DC50.6V
Voltage range DC16.5 to 29.7V DC33.0 to 59.4V
Rated capacity 556Wh (22Ah) 1112Wh (44Ah) 1112Wh (22Ah)
Maximum
allowable
current
125A (200 seconds) 150A (200 seconds)
125A (200 seconds)
Charging
method
CCCV (V=28.6V) CCCV (V=57.2V)
Dimensions W247 x D188 x H165mm Using the two batteries described
on the left hand side
Using two batteries (W247 x D188 x H165mm)
Weight Approx. 8kg
Approx. 16kg Approx. 16kg
Ambient
temperature
for use
-30 to 45℃
Ambient
temperature
for storage
-30 to 55℃ (35°C or less is recommended)
Humidity for use /
storage
85%RH or less (without dew condensation)
Dust-proof
Water-proof
IP53 or equivalent
Protection
function
Over charge protection, Over discharge protection, High temperature protection, Low temperature protection

* The time durations, masses, life, battery capacities, life cycles and other items mentioned in comparison with lead-acid batteries are the values for reference purposes only, simulating scenes where batteries are used in AGVs.
* The characteristic graphs and data do not guarantee the product performance. These are the reference data obtained under a certain condition.
* The design, specifications, components, and others may change without prior notice.
* The product package designs are for webpages and catalogs and differ from the package designs of actual products.
* CCCV : Constant Current Constant Voltage
