List of the components
Battery modules are built up into larger arrays with peripheral battery system components.
Toshiba has the following battery system components available for building battery systems.

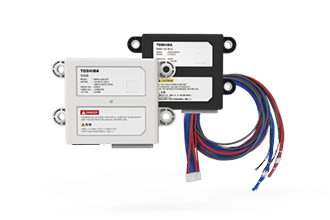

Product name | Photo | Type / Model | Specification | Dimensions (mm) | Weight (g) |
Remarks |
---|---|---|---|---|---|---|
BMU (Battery Management Unit) |
2G type (BMU-2G-RJ45) / 5P4E0124P001 |
Upper communication: Select from Ethernet/CAN. Maximum number of Type3 series connection: 37* Maximum number of BMU connection: 22 * For BMU-2G, up to 56 modules can be connected. |
W95.0×D88.0×H32.0 (Protrusions excluded) |
130 | Standard type | |
Contactor (MC) |
S type (Standard) / FMW-GAA0004P |
Contact rated capacity: 800 VDC-100 A Coil rating: 12 VDC-583 mA ± 10% |
W98.0×D44.0×H86.2 | 650 | - | |
H type (High current) / 5P4E0092P001 |
Contact rated capacity: 750 VDC-200 A Coil rating: 12 VDC-3.3 A ± 10% |
W111.0×D63.0×H74.7 | 750 | Drive signal cable included (Cable length: 300 mm) | ||
Current sensor (Hall Current Transformer : HCT) |
C2 type (CAN communication type) / PUR-0000145 |
Measurement range:-500 to 500A | W51.4×D21.3×H71.5 | 67 | The CAN communication connector is to be prepared by customers | |
A2 type (Analog type)) / FMW-GAA0071P |
Measurement range: Channel 1: -30 to 30 A Channel 2: -350 to 350 A |
W62.0×D43.5×H24.0 | 82 | C2 type is recommended for BMU-2G. | ||
Service disconnect (SDC) |
SDC-750P (Plug) / FMW-GAA0003P |
Rated voltage: 750 VDC Rated current: 120 A or lower Fuse: 750 VDC - 125 A (built-in) |
W149.5×D43.9×H97.0 | 585 | Fast acting fuse | |
SDC-750R (Receptacle) / FMW-GAA0012P |
||||||
SDC-1500 / 5P4E0093P002 |
Rated voltage: AC/DC 1500V Rated current: 200 A or lower Fuse: Combined with a commercially-available fuse |
W110.0×D76.75×H50.0 | 270 | Recommended fuse: ・HINODE ELECTRIC (750GH-200UL) ・Mersen HP10NH2GPV200B |
||
Current leak sensor (Earth-leakage sensor:ELS) |
- / FMW-GAA0002P |
Ground withstand voltage range: DC ± 800 V Electric leakage detection resistance value: 500 ± 100 kΩ |
W73.0×D62.0×H30.0 (Protrusions excluded) |
90 | Leakage is detected when the Contactor is open | |
Termination plug (TP) |
- / 5P4E0003P001 |
120Ω ± 5% or less (Allowable loss: 1/4W or more) |
Overall length: 52.5 | 10 | Termination resistor for CAN communication | |
Self-Starter Gateway for BMU | - / FMW-GAA0070P |
Gateway : CAN⇔RS232C / DIO conversion Self-starting function Self shutdown function |
W95.0×D88.0×H32.0 (Protrusions excluded) |
138 | Self-Starter Gateway for BMU | |
BMU connection cable | - / FMW-HAA0002P |
For connecting between BMU and module /Current leak sensor /electric leakage sensor /SDC/contactor etc. |
Cable length: 2000 | 530 | Connect to CH1 side of BMU-2G | |
SDC-750 fitting detection cable | - / FMW-HAA0003P |
Connection between SDC-750 and BMU | Cable length: 1000 | 20 | The cable of SDC-1500 is to be prepared by customers. | |
Current sensor (A2 type) connection cable |
- / FMW-HAA0066P |
Connection between the current sensor and BMU | Cable length: 1000 | 37 | Only for A2 type current sensor | |
Current leak sensor connection cable | - / FMW-HAA0005P |
Connection between the current sensor and BMU | Cable length: 1000 | 30 | - | |
Current leak sensor main circuit cable | - / FMW-HAA0006P |
Connection between the electric leakage sensor and negative terminal contactor | Cable length: 1000 | 70 | - |
Product name | Photo | Type / Model | Specification | Dimensions (mm) | Weight (g) |
Remarks |
---|---|---|---|---|---|---|
BMU (Battery Management Unit) |
2G type (BMU-2G-RJ45) / 5P4E0124P001 |
Upper communication: Select from Ethernet/CAN. Maximum number of Type3 series connection: 37* Maximum number of BMU connection: 22 * For BMU-2G, up to 56 modules can be connected. |
W95.0×D88.0×H32.0 (Protrusions excluded) |
130 | Standard type | |
Contactor (MC) |
S type (Standard) / FMW-GAA0004P |
Contact rated capacity: 800 VDC-100 A Coil rating: 12 VDC-583 mA ± 10% |
W98.0×D44.0×H86.2 | 650 | - | |
H type (High current) / 5P4E0092P001 |
Contact rated capacity: 750 VDC-200 A Coil rating: 12 VDC-3.3 A ± 10% |
W111.0×D63.0×H74.7 | 750 | Drive signal cable included (Cable length: 300 mm) | ||
Current sensor (Hall Current Transformer : HCT) |
C2 type (CAN communication type) / PUR-0000145 |
Measurement range:-500 to 500A | W51.4×D21.3×H71.5 | 67 | The CAN communication connector is to be prepared by customers | |
A2 type (Analog type)) / FMW-GAA0071P |
Measurement range: Channel 1: -30 to 30 A Channel 2: -350 to 350 A |
W62.0×D43.5×H24.0 | 82 | C2 type is recommended for BMU-2G. | ||
Service disconnect (SDC) |
SDC-750P (Plug) / FMW-GAA0003P |
Rated voltage: 750 VDC Rated current: 120 A or lower Fuse: 750 VDC - 125 A (built-in) |
W149.5×D43.9×H97.0 | 585 | Fast acting fuse | |
SDC-750R (Receptacle) / FMW-GAA0012P |
||||||
SDC-1500 / 5P4E0093P002 |
Rated voltage: AC/DC 1500V Rated current: 200 A or lower Fuse: Combined with a commercially-available fuse |
W110.0×D76.75×H50.0 | 270 | Recommended fuse: ・HINODE ELECTRIC (750GH-200UL) ・Mersen HP10NH2GPV200B |
||
Current leak sensor (Earth-leakage sensor:ELS) |
- / FMW-GAA0002P |
Ground withstand voltage range: DC ± 800 V Electric leakage detection resistance value: 500 ± 100 kΩ |
W73.0×D62.0×H30.0 (Protrusions excluded) |
90 | Leakage is detected when the Contactor is open | |
Termination plug (TP) |
- / 5P4E0003P001 |
120Ω ± 5% or less (Allowable loss: 1/4W or more) |
Overall length: 52.5 | 10 | Termination resistor for CAN communication | |
Self-Starter Gateway for BMU | - / FMW-GAA0070P |
Gateway : CAN⇔RS232C / DIO conversion Self-starting function Self shutdown function |
W95.0×D88.0×H32.0 (Protrusions excluded) |
138 | Self-Starter Gateway for BMU | |
BMU connection cable | - / FMW-HAA0002P |
For connecting between BMU and module /Current leak sensor /electric leakage sensor /SDC/contactor etc. |
Cable length: 2000 | 530 | Connect to CH1 side of BMU-2G | |
SDC-750 fitting detection cable | - / FMW-HAA0003P |
Connection between SDC-750 and BMU | Cable length: 1000 | 20 | The cable of SDC-1500 is to be prepared by customers. | |
Current sensor (A2 type) connection cable |
- / FMW-HAA0066P |
Connection between the current sensor and BMU | Cable length: 1000 | 37 | Only for A2 type current sensor | |
Current leak sensor connection cable | - / FMW-HAA0005P |
Connection between the current sensor and BMU | Cable length: 1000 | 30 | - | |
Current leak sensor main circuit cable | - / FMW-HAA0006P |
Connection between the electric leakage sensor and negative terminal contactor | Cable length: 1000 | 70 | - |
Components to be prepared by the customer
Connection cable for Ethernet/CAN communication |
Use this cable for the CAN-communication connection between BMU-2G and the upper communication (Ethernet), module, BMU, or current sensor (C2 type). Recommended cable (STP straight cable, category 5e or higher) |
Connection cable for Ethernet/CAN communication |
Use this cable for the CAN-communication connection between BMU-2G and the upper communication (Ethernet), module, BMU, or current sensor (C2 type). Recommended cable (STP straight cable, category 5e or higher) |
Component | Connector | Remarks | |
---|---|---|---|
BMU-2G | Main on the CH1 side | Dedicated | Mixed with other control cables |
Sub on the CH2 side | |||
HCT | Current sensor (C2 type) |
Common to IN/OUT | |
MDL | Battery module | RJ45 | IN/OUT independent |
Component | Connector | Remarks | |
---|---|---|---|
BMU-2G | Main on the CH1 side | Dedicated | Mixed with other control cables |
Sub on the CH2 side | |||
HCT | Current sensor (C2 type) |
Common to IN/OUT | |
MDL | Battery module | RJ45 | IN/OUT independent |
*Cable end is to be appropriately processed by customers.
*There are cases when the product names etc. indicated on this web page are used by each company as a trademark.
Examples of Applications of Battery System Components
Battery system components, such as the BMU, which is the core of the monitoring system, and of a variety of sensors, and cables, are combined with battery modules to build up a battery system.
The number of battery modules and battery system components are determined according to the voltage and capacity of the battery system.
Combination list
Maximum voltage | 750V or less | 910V or less | 1200V or less | |
---|---|---|---|---|
Number of Type3 battery module series connection*1 | 1 to 23 | 24 to 28 | 29 to 37 | |
BMU | 2G type*2 | 〇 | 〇 | 〇 |
Contactor | S type (Standard) | 〇 | △*3 | |
H type (High current) | 〇 | |||
Current sensor | C2 type (CAN communication type) | 〇 | 〇 | 〇 |
A2 type (Analog type) | 〇 | 〇 | 〇 | |
SDC | SDC-750 | 〇 | ||
SDC-1500 | 〇 | 〇 | 〇 | |
Others | Current leak sensor | 〇 | △*3 | |
Termination plug | 〇 | 〇 | 〇 | |
Cable | BMU connection cable | 〇 | 〇 | |
SDC-750 fitting detection cable | 〇 | |||
Current sensor (A type) connection cable | 〇 | 〇 | 〇 | |
Current leak sensor connection cable | 〇 | △*3 | ||
Current leak sensor main circuit cable | 〇 | △*3 |
Maximum voltage | 750V or less | 910V or less | 1200V or less | |
---|---|---|---|---|
Number of Type3 battery module series connection*1 | 1 to 23 | 24 to 28 | 29 to 37 | |
BMU | 2G type*2 | 〇 | 〇 | 〇 |
Contactor | S type (Standard) | 〇 | △*3 | |
H type (High current) | 〇 | |||
Current sensor | C2 type (CAN communication type) | 〇 | 〇 | 〇 |
A2 type (Analog type) | 〇 | 〇 | 〇 | |
SDC | SDC-750 | 〇 | ||
SDC-1500 | 〇 | 〇 | 〇 | |
Others | Current leak sensor | 〇 | △*3 | |
Termination plug | 〇 | 〇 | 〇 | |
Cable | BMU connection cable | 〇 | 〇 | |
SDC-750 fitting detection cable | 〇 | |||
Current sensor (A type) connection cable | 〇 | 〇 | 〇 | |
Current leak sensor connection cable | 〇 | △*3 | ||
Current leak sensor main circuit cable | 〇 | △*3 |
*1: Number or series connection is calculated assuming the maximum charging voltage of a cell is 2.7 V and modules can be connected up to 37 in series.
*2: For BMU-2G, up to 56 modules can be connected.
*3: Usable up to 24 in series

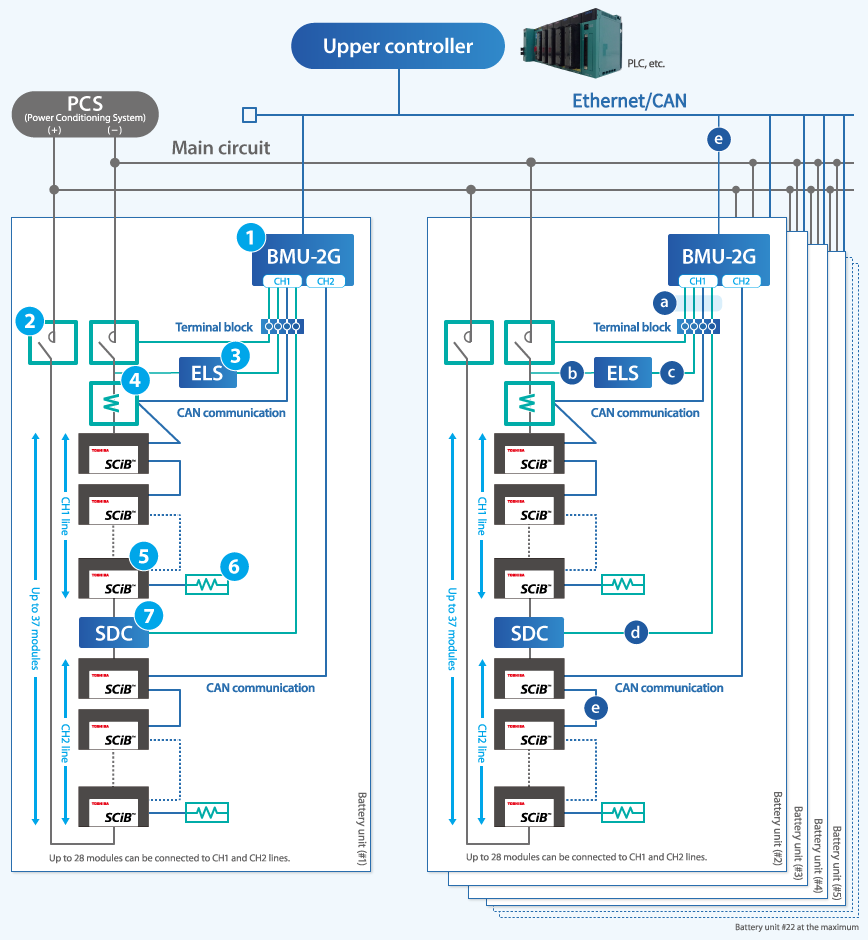

Battery system block diagram
NO | Product name | Function | Photo | |
---|---|---|---|---|
① | BMU (Battery Management Unit) |
2G type | BMU monitors the cell voltage and temperature of each battery module, and protects the battery if an abnormality is detected. Additionally, this measures the charge/discharge current, and calculates the SOC value. Furthermore, this notifies the upper controller of the battery information, measurement/calculation information, etc. via Ethernet or CAN communication. | |
② | Contactor |
S type (Standard) |
The contactors are installed respectively to the positive terminal and negative terminal of the main circuit to shut down the main circuit in response to instructions from BMU if an abnormality occurs in the battery. * The drive signal cable comes with the H type. |
|
H type (High current) |
||||
③ | Current leak sensor (ELS) | The current leak sensor detects leakage in response to instructions on the fault diagnostic signal from the upper controller after the main circuit is shut down. | ||
④ | Current sensor (HCT) | C2 type | The current sensor measures the charging/discharging current. The measured data is sent to BMU via CAN communication. | |
⑤ | Battery module(MDL) |
Type3 | The battery module consists of 24 cells (2 in parallel and 12 in series), and incorporates the cell monitoring unit (CMU) that monitors the voltage and temperature of these cells. | |
⑥ | Termination plug (TP) | The termination plug is the termination resistor for CAN communication. | ||
⑦ | Service disconnect(SDC) |
SDC-750 | The service disconnect is used to disconnect the main circuit when installing / removing the battery module or during the maintenance work. The built-in fast acting fuse to protect the battery in the case of external short circuit. * SDC-1500 does not have a built-in protection fuse. Use a commercially-available fuse additionally. The example of fuse use ・HINODE ELECTRIC (750GH-200UL) ・Mersen (HP10NH2GPV200B) |
|
SDC-1500 |
NO | Product name | Function | Photo | |
---|---|---|---|---|
① | BMU (Battery Management Unit) |
2G type | BMU monitors the cell voltage and temperature of each battery module, and protects the battery if an abnormality is detected. Additionally, this measures the charge/discharge current, and calculates the SOC value. Furthermore, this notifies the upper controller of the battery information, measurement/calculation information, etc. via Ethernet or CAN communication. | |
② | Contactor |
S type (Standard) |
The contactors are installed respectively to the positive terminal and negative terminal of the main circuit to shut down the main circuit in response to instructions from BMU if an abnormality occurs in the battery. * The drive signal cable comes with the H type. |
|
H type (High current) |
||||
③ | Current leak sensor (ELS) | The current leak sensor detects leakage in response to instructions on the fault diagnostic signal from the upper controller after the main circuit is shut down. | ||
④ | Current sensor (HCT) | C2 type | The current sensor measures the charging/discharging current. The measured data is sent to BMU via CAN communication. | |
⑤ | Battery module(MDL) |
Type3 | The battery module consists of 24 cells (2 in parallel and 12 in series), and incorporates the cell monitoring unit (CMU) that monitors the voltage and temperature of these cells. | |
⑥ | Termination plug (TP) | The termination plug is the termination resistor for CAN communication. | ||
⑦ | Service disconnect(SDC) |
SDC-750 | The service disconnect is used to disconnect the main circuit when installing / removing the battery module or during the maintenance work. The built-in fast acting fuse to protect the battery in the case of external short circuit. * SDC-1500 does not have a built-in protection fuse. Use a commercially-available fuse additionally. The example of fuse use ・HINODE ELECTRIC (750GH-200UL) ・Mersen (HP10NH2GPV200B) |
|
SDC-1500 |
Cable types
NO | Product name | Function | Photo |
---|---|---|---|
a | BMU connection cable | Use the BMU connection cable to connect between BMU and other components, upper device, maintenance device, and 12VDC power source. BMU-2 G-M12 is not applicable. |
|
b | Current leak sensor main circuit cable | Use this cable to connect to the connector used for the current leak sensor main circuit connection. | |
c | Current leak sensor connection cable | Use this cable to connect to the current leak sensor control signal connector. | |
d | SDC-750 fitting detection cable | Use this cable to connect to the fitting detection connector of the service disconnect. * The cable for SDC-1500 is to be prepared by customers. |
|
e | Connection cable for Ethernet/CAN communication This cable is to be prepared by customers. |
Use this cable for the CAN-communication connection between BMU-2G and the upper communication (Ethernet), module, BMU, or current sensor (C2 type). Recommended cable (STP straight cable, category 5e or higher) Note: The CAN communication cable extension length cannot exceed 40 m. |
NO | Product name | Function | Photo |
---|---|---|---|
a | BMU connection cable | Use the BMU connection cable to connect between BMU and other components, upper device, maintenance device, and 12VDC power source. BMU-2 G-M12 is not applicable. |
|
b | Current leak sensor main circuit cable | Use this cable to connect to the connector used for the current leak sensor main circuit connection. | |
c | Current leak sensor connection cable | Use this cable to connect to the current leak sensor control signal connector. | |
d | SDC-750 fitting detection cable | Use this cable to connect to the fitting detection connector of the service disconnect. * The cable for SDC-1500 is to be prepared by customers. |
|
e | Connection cable for Ethernet/CAN communication This cable is to be prepared by customers. |
Use this cable for the CAN-communication connection between BMU-2G and the upper communication (Ethernet), module, BMU, or current sensor (C2 type). Recommended cable (STP straight cable, category 5e or higher) Note: The CAN communication cable extension length cannot exceed 40 m. |
*There are cases when the product names etc. indicated on this web page are used by each company as a trademark.
Examples of module application
Various types of cart
Go-cart, golf cart, etc.
Using 1 to 4 modules
Electric population ship
The source of power a electric population ship
Using 10 to hundreds of modules
Uninterruptible power system (UPS)
Communication equipment, traffic light,etc.
Using 2 to 4 modules
Gantry crane
Shipping and discharging cargo, Charge of regenerative electric power
Using 10 to hundreds of modules
BESS* for public and industrial applications
Disaster prevention, BCP, energy saving, etc.
Using 10 to hundreds of modules
*Battery energy storage system
(This system is only available for Japan)
Renewable energy
Solar power generation facilities, etc.
Using hundreds to thousands of modules
* Nominal capacity per module (kWh): Type3-20 (1.10 kWh), Type3-23 (1.24 kWh)
