High-energy type cells

High-energy type cells

Product lineup

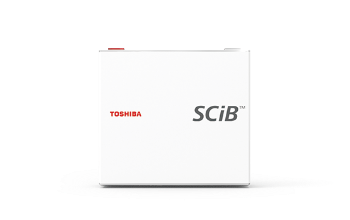

20Ah cell

The high energy 20Ah SCiB™ cell is well suited for applications that require high capacity and high power.


Recommended
applications

Recommended applications

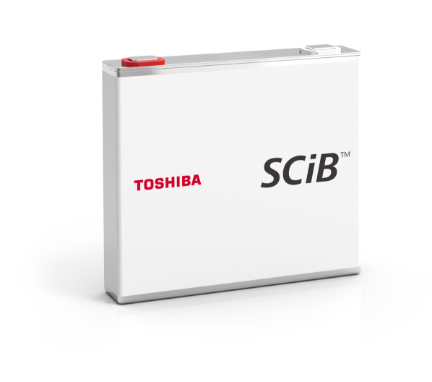

23Ah cell

Toshiba has launched mass production of the 23Ah SCiB™ cell, which maintains the advantages of the 20Ah cell such as rapid charging, low-temperature operation, long life and a high level of safety. The 23Ah cell is preferable for applications that require higher capacity and high power.


Recommended
applications

Recommended applications

Long life (cycle characteristics)

High-energy cells maintain over 70% of its capacity after 20,000 charge/discharge cycles under harsh conditions.

Rapid charging

The 20Ah SCiB™ cell can be charged to over 80% of its capacity in six minutes.

Long life (float charging)

SCiB™ does not exhibit significant degradation even when it undergoes float charging* that is harmful for typical lithium-ion batteries. Therefore, SCiB™ can be safely used for applications requiring continuous application of constant voltage such as backup power supplies.
* Float charging means continuous constant voltage charging.

Low-temperature operation

SCiB™ can provide sufficient discharge current at low temperatures as low as -30°C. The 20Ah SCiB™ cell can also be charged at low temperatures, making it suitable for applications that are used over a wide temperature range.


Product specifications

Product name 20Ah cell
20Ah cell
23Ah cell
23Ah cell
Rated capacity 20Ah 23Ah
Nominal voltage 2.3V 2.3V
Output Power 1200W*
 (SOC 50%, 10s, 25℃)
1000W*
 (SOC 50%, 10s, 25℃)
Input Power 1100W*
 (SOC 50%, 10s, 25℃)
1000W*
 (SOC 50%, 10s, 25℃)
Volumetric energy density 176Wh/L 202Wh/L
Weight energy density 89Wh/kg 96Wh/kg
Dimensions W116 × D22 × H106 mm W116 × D22 × H106 mm
Weight Approx. 515g Approx. 550g
Product name 20Ah cell
20Ah cell
23Ah cell
23Ah cell
Rated capacity 20Ah 23Ah
Nominal voltage 2.3V 2.3V
Output Power 1200W*
 (SOC 50%, 10s, 25℃)
1000W*
 (SOC 50%, 10s, 25℃)
Input Power 1100W*
 (SOC 50%, 10s, 25℃)
1000W*
 (SOC 50%, 10s, 25℃)
Volumetric energy density 176Wh/L 202Wh/L
Weight energy density 89Wh/kg 96Wh/kg
Dimensions W116 × D22 × H106 mm W116 × D22 × H106 mm
Weight Approx. 515g Approx. 550g



* This value is calculated from the internal resistance.
※ Specifications shown herein are not guaranteed values and are subject to change without notice. Performance depends on usage conditions.
※ The package design presented on the web is for catalogue purpose, so the design of the actual battery will be different.
※ 23Ah cell uses part of technology achievement made by Japan’s New Energy and Industrial Technology Development Organization (NEDO) subsidized projects.
