SCiB™ Cells

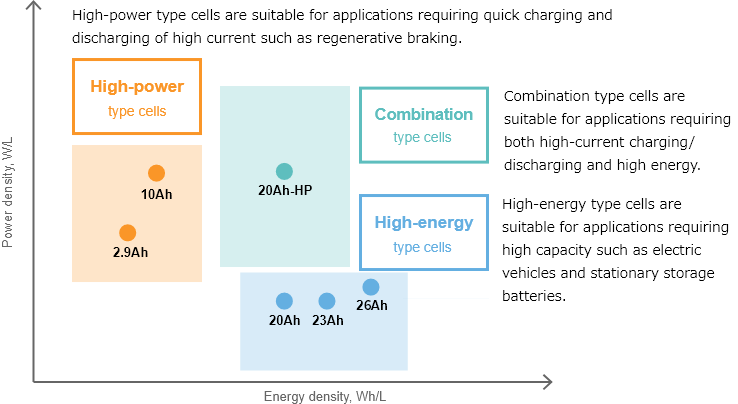

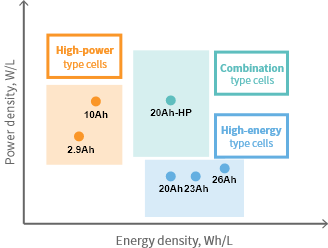

Product lineup

SCiB™ rechargeable cells can be categorized into two types: high power and high energy.
The high power cell is suitable for applications requiring the charging and discharging of large current in a short time
such as regenerative braking in automotive applications.
The high energy cell is suitable for applications requiring large capacity such as electric vehicles and stationary storage systems.

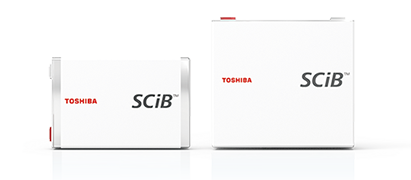

High power type


High power 2.9Ah cell

The compact high power 2.9Ah cell is well suited for applications that require short-time high power charge/discharge, and for applications that require small battery size and light weight.

High power 10Ah cell

10Ah cell is well suited for applications that require short-time high power charge/discharge such as regenerative electric power in start-stop and railway systems, and industrial equipment.

Long life (cycle characteristics)

The 2.9Ah SCiB™ cell maintains over 80% of its initial capacity after 40,000 charge/discharge cycles at a tough charge/discharge rate (10C) and high temperature (35°C) conditions.

Rapid charging

The 2.9Ah SCiB™ cell can be charged from 0 to over 80% SOC* in one minute.

* State of Charge

High-rate discharge

The 2.9Ah SCiB™ cell provides stable discharge capacity even in large discharge current.

Low-temperature operation

The 10Ah SCiB™ cell can be charged and discharged at temperatures below the freezing point.
There is little degradation even if charge and discharge operation is repeated under low temperature condition, making it suitable for use in a wide range of temperature.

Product specifications


High power type

Product name 2.9Ah cell 10Ah cell
Rated capacity 2.9Ah 10Ah
Nominal voltage 2.4V 2.4V
Output Power 520W*(SOC 50%, 10s, 25℃) 1800W*(SOC50%, 10s, 25℃)
Input Power 410W*(SOC 50%, 10s, 25℃) 1500W*(SOC 50%, 10s, 25℃)
Energy density (volume)
85Wh/L 92Wh/L
Energy density (mass) 46Wh/kg 47Wh/kg
Dimensions W63 × D14 × H97 mm W116 × D22 × H106 mm
Weight Approx. 150g Approx. 510g



* This value is calculated from the internal resistance.
※ Specifications shown herein are not guaranteed values and are subject to change without notice. Performance depends on usage conditions.
※ The package design presented on the web is for catalogue purpose, so the design of the actual battery will be different.
※ 10Ah cell uses part of technology achievement made by Japan’s New Energy and Industrial Technology Development Organization (NEDO) subsidized projects.

High energy type


High energy 20Ah cell

The high energy 20Ah SCiB™ cell is well suited for applications that require high capacity and high power.

High energy 23Ah cell

Toshiba has launched mass production of the 23Ah SCiB™ cell, which maintains the advantages of the 20Ah cell such as rapid charging, low-temperature operation, long life and a high level of safety. The 23Ah cell is preferable for applications that require higher capacity and high power.

Long life (cycle characteristics)

The 20Ah SCiB™ cell maintains over 70% of its capacity after 20,000 charge/discharge cycles at a tough charge/discharge rate(3C) condition.

Rapid charging

The 20Ah SCiB™ cell can be charged from 0 to over 80% SOC* in six minutes.

* State of Charge

Long life (float charging)

SCiB™ exhibits low deterioration even at float charging where conventional lithium-ion batteries get damaged. Therefore, SCiB™ can be used in applications such as back-up power source that requires constant voltage charging.

* Float charging means continuous constant voltage charging.

Low-temperature operation

SCiB™ cell can provide adequate discharge capacity at temperatures as low as -30°C. The 20Ah SCiB™ cell can also be charged at low temperatures, making it suitable for applications that require a wide temperature range.

Product specifications


High energy type

Product name 20Ah cell 23Ah cell
Rated capacity 20Ah 23Ah
Nominal voltage 2.3V 2.3V
Output Power 1200W* (SOC50%, 10s, 25℃) 1000W* (SOC50%, 10s, 25℃)
Input Power 1100W* (SOC50%, 10s, 25℃) 1000W* (SOC50%, 10s, 25℃)
Volumetric energy density
176Wh/L 202Wh/L
Weight energy density 89Wh/kg 96Wh/kg
Dimensions W116 × D22 × H106 mm W116 × D22 × H106 mm
Weight Approx. 515g Approx. 550g



* This value is calculated from the internal resistance.
* Specifications shown herein are not guaranteed values and are subject to change without notice. Performance depends on usage conditions.
* The package design presented on the web is for catalogue purpose, so the design of the actual battery will be different.
* 23Ah cell uses part of technology achievement made by Japan’s New Energy and Industrial Technology Development Organization (NEDO) subsidized projects.
