Toshiba's New 8-time Rotational Speed CD-ROM Drive with SCSI Interface

12 June, 1996

TOKYO -- Toshiba Corporation today announced the worldwide introduction of an 8-time rotational speed CD-ROM drive with a data transfer rate of 1,200 kilobytes (KB) a second. The new CD-ROM drive supports the Small Computer System Interface (SCSI) widely used with computers, including workstaion and network servers.

The CD-ROM drive market is enjoying considerable growth, and is expected to grow some 30% to over 40 million units worldwide in FY 1996. The market trend is for high rotational speed models, including 8-time drives. In response, Toshiba has already introduced an 8-time rotational speed drive with AT Attachment Packet interface (ATAPI) that is suitable for incorporation in IBM compatible PCs. The introduction of a new 8-time drive with SCSI interface further reinforces the Toshiba line-up.

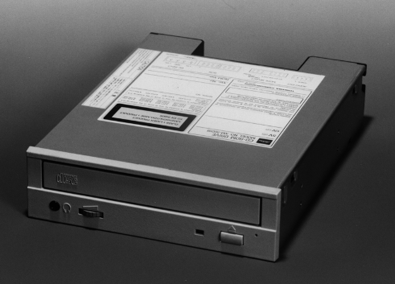

The new drive, XM-5601B, achieves a fast average random seek time of 130 milliseconds and a random access time of only 145 milliseconds. This high level of performance results from accelerating operation of the digital signal processor used for digital servo control, improved error correction capabilities, and an improved pick-up head and motor designed for high speed data access. The result is reliable data reads even at 8-time rotational speed.

XM-5601B also incorporates Toshiba's proven performance-improving digital servo system and variable speed playback, which starts to read data before the disc speed reaches any standard rotational rate. The power-saving capabilities of these technologies give the XM-5601B an average power consumption of only 4.3W.

Shipment of XM-5601B will start from July 1996. Samples are priced at 60,000 yen in Japan.


Model Name XM-5601B
Built-in type 5.25-inch half-height CD-ROM Drive
Applicable Disc format CD-DA, CD-ROM, CD-ROM XA,
CD-I, CD-I Ready,
CD-I Bridge (Photo CD, Video CD),
Multisession (Photo CD, CD EXTRA), CD-G
MPC-3 Spec. Compliant
Interface SCSI
Access time (8x mode) Random access 145ms
Random seek 130ms
Full stroke access 290ms
Data transfer rate Sustained mode 1,200KB/s
Burst mode 10.0MB/s (Sync)
5.0MB/s (Async)
Transfer mode CD-DA, Subcode P, Q, R-W transfer
through SCSI
Error correction Mode-1 EDC/ECC built-in,
Form-2 EDC built-in, Subcode ECC built-in
Buffer memory 256KB
Sealed enclosure
Mounting orientation Horizontal + or -20 degree
Vertical + or -10 degree
Power consumption 4.3W (Average), 6.9W (Maximum)
Disc loading Tray type electrical load/eject
Audio output Headphone output (front)/
Line out and digital out (rear)
MTBF 100,000POH
Power supply DC 5V/12V
Dimensions 41.5(H) x 146(W) x 190(D)mm
Weight 0.9kg

Information in the press releases, including product prices and specifications, content of services and contact information, is current on the date of the press announcement,but is subject to change without prior notice.
